Description

Jigou TMY-1060H Automatic Foil Stamping & Die-cutting Machine


Machine Specs

Max. sheet size 1060X760(mm)

Min. sheet size 400X360(mm)

Max. die cutting size 1040X740(mm)

Max.stamping range1030X730(mm)

Max.die cutting speed7500s/h

Sheet thickness0.1~3mm(Card paper)

≤4mm(corrugated paper)

Die cutting precision±0.1mm

Stamping tempreture20-200℃

Heating plate zone number12

Number of foil rollers3 longitudinal / 2 transversal

Max.feeding pile height1600mm

Max.delivery pile height 1400mm

Max.pressure350T

Total power 70kw

Total weight18T

Overall dimension7600X4050X2500mm

Air requirements0.8Mpa,>0.36m³/min


Fully Automatic Heat Press Die Cutting And Hot Foil Stamping Machine Features

* Complete design, accurate installation, high stability, high security, low noise.



* Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.High precision intermittent mechanism, high cutting precision, running steadily.

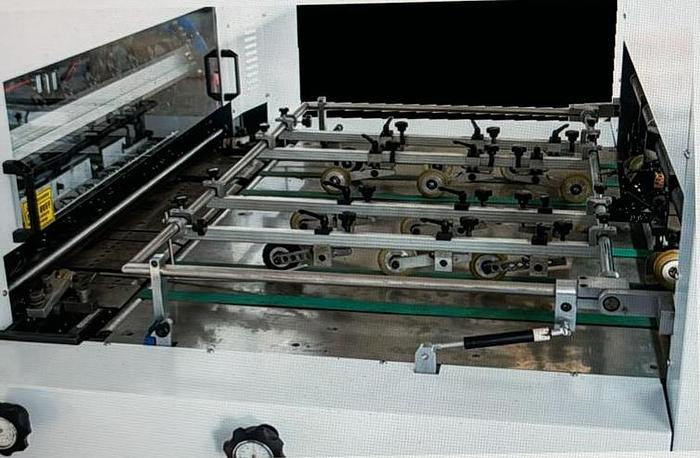

* Adopt European feeder, suction adjustable, stable, precise, good paper applicability.Non-stop feeding, pre-stacking and delivery mechanism can shorten the auxiliary time,improve the efficiency.

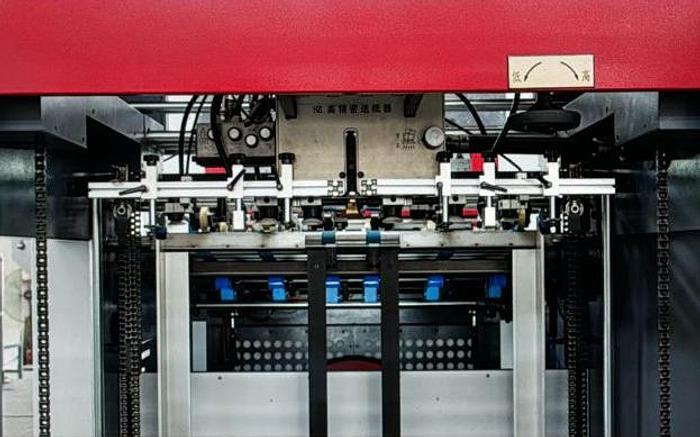

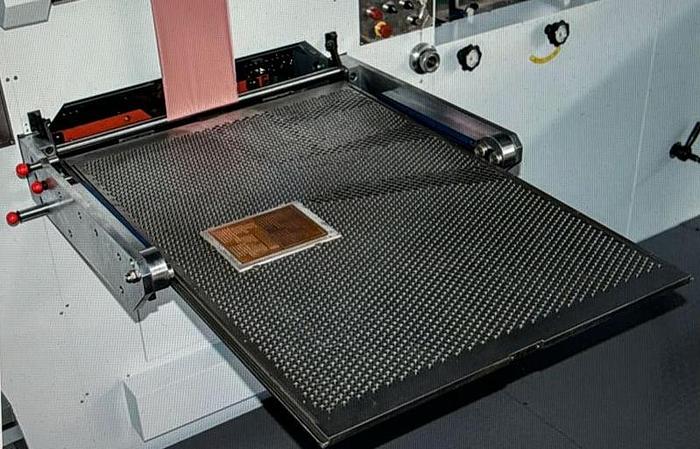

* Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.Pneumatic die locking device, die frame fixed more steadily, accurately and time saving.Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.

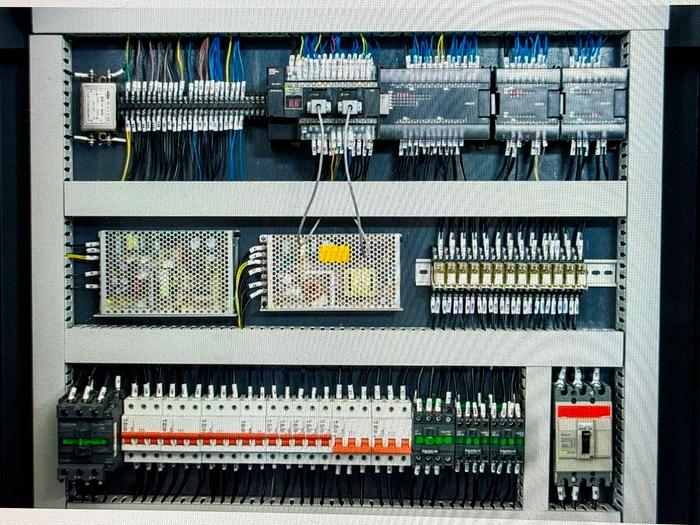

* Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.Adopt industrial tablet PC, touch screen input data, realize automatic programming, greatly saving aluminum foil.



* Temperature control system has 12 heating area, temperature setting separately, thermostatic control.



* Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

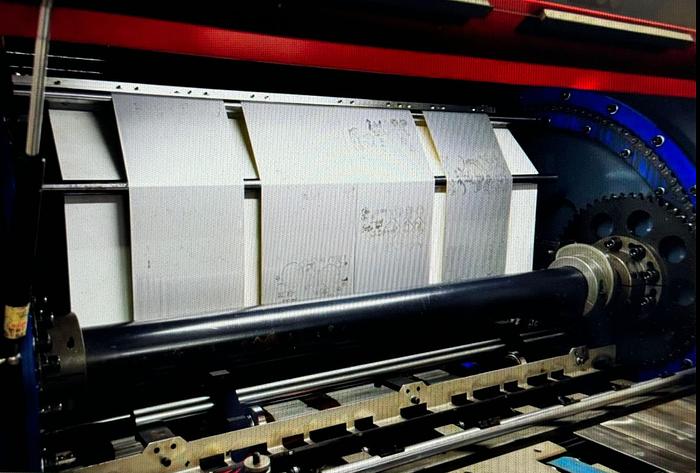

* Drawer type foil feeding mechanism, improve efficiency and ensure safety.



Specifications

ManufacturerJiguo TMY-1060H Automatic Foil Stamping & Die-cutting Machine
ConditionUsed
