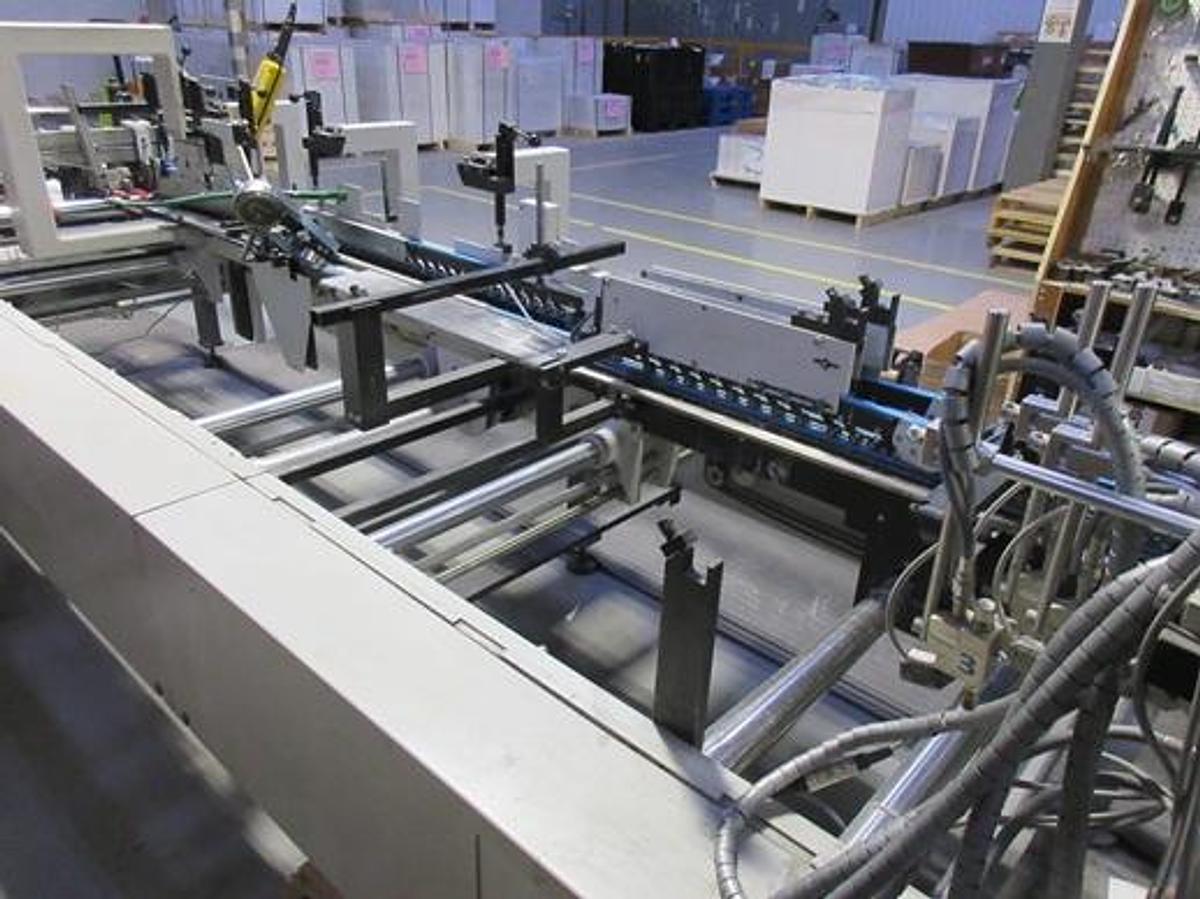

2003 BOBST MEDIA 100 II A-2 Folder Gluer

2003 BOBST MEDIA 100 II A-2

Max. blank width : 39 3/8” (1000 mm)

Min. blank width : 5” (126 mm)

Max. blank length : 23 5/8” (600 mm)

Min. blank length : 2 3/8” (60 mm)

Processed materials : max. 600 g/m2 including N, F and E flute

Operation speed : Up to 300 m/min.

Machine voltage : 460 V, 19 kVa, 23 A

Machine production hours : 37,590 hours (only 33 hours/week)

Equipped for straight-line, lock-bottom and double-wall cartons

Equipment details :

Feeder with pile vibrator

7 infeed belts, with dust blower device

2 main gauges at feeder

Pre-breaker and folding sections including upper and lower conveyors

Central lower supporting guides in pre breaker and folding sections

Lower left-hand glue unit

Electroses 8 channel high pressure extrusion gluing system with three (3) glue guns

Manual carrier machine settings

Remote control

Bobst CUBE

Box counter with pneumatic kicker

Transfer section

Delivery apron

Machine is under power and can be seen in operation.
