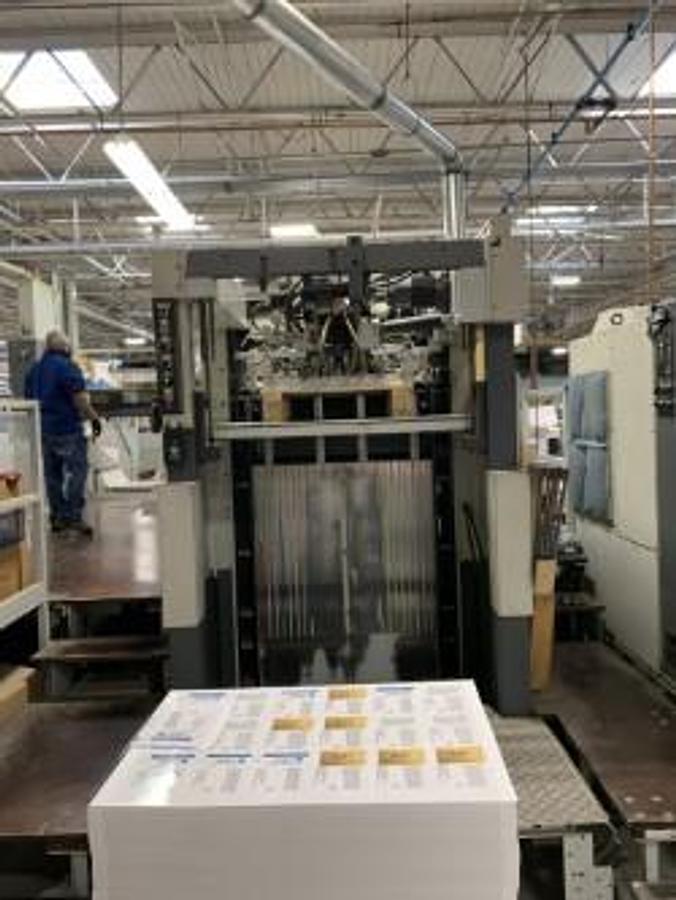

1992 Bobst SP 102 CER Diecutter / Blanker

1992 Bobst SP 102 CER diecutter / blanker

Maximum sheet size : 40 1/8” x 28 3/8” ( 1020 mm x 720 mm )

Minimum sheet size : 15 ¾” x 13 ¾” ( 400 mm x 350 mm)

Cutting force : 250 ton metric cutting pressure (275 US tons)

Maximum production rate : 8,000 sheets per hour

Processed materials : .004” to .160”

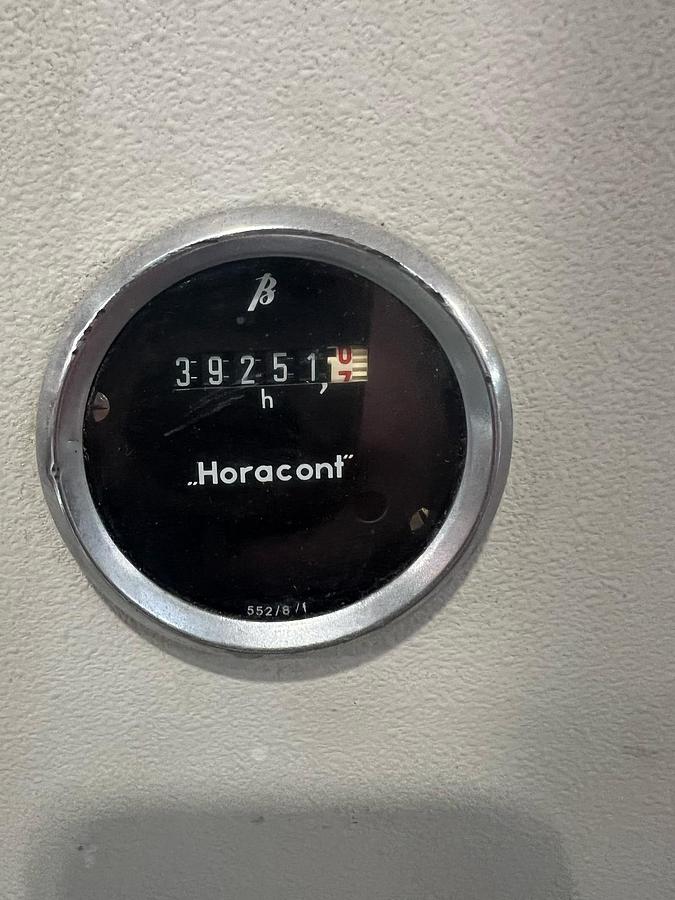

Machine operating hours : Only approx. 40,000 hours (24 hours/week)

Equipment details :

• 410 mm (16”) machine elevation

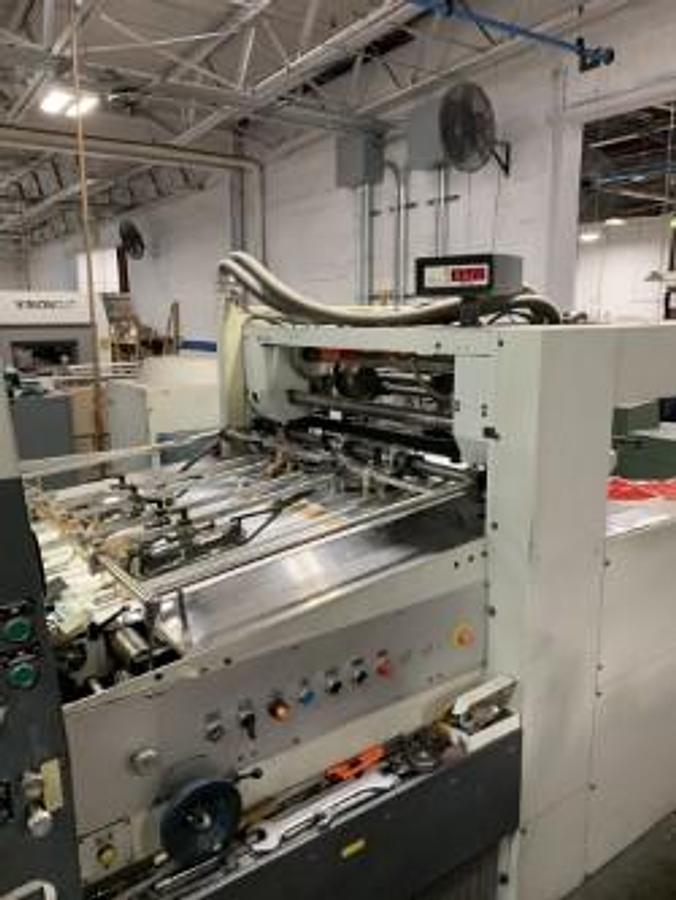

• Non-stop pallet feeder

• One (1) O.S. (operator side) pull guide

• Centerline system

• One (1) cutting chase

• Five (5) cutting plates

• Lower supporting plate

• One (1) set of upper, central and lower stripping frames

• One (1) set of upper stripping equipment including pin holders and pins

• One (1) set of lower stripping equipment including pin holders and pins

• One (1) set of upper and lower blanking frames with universal tool frame

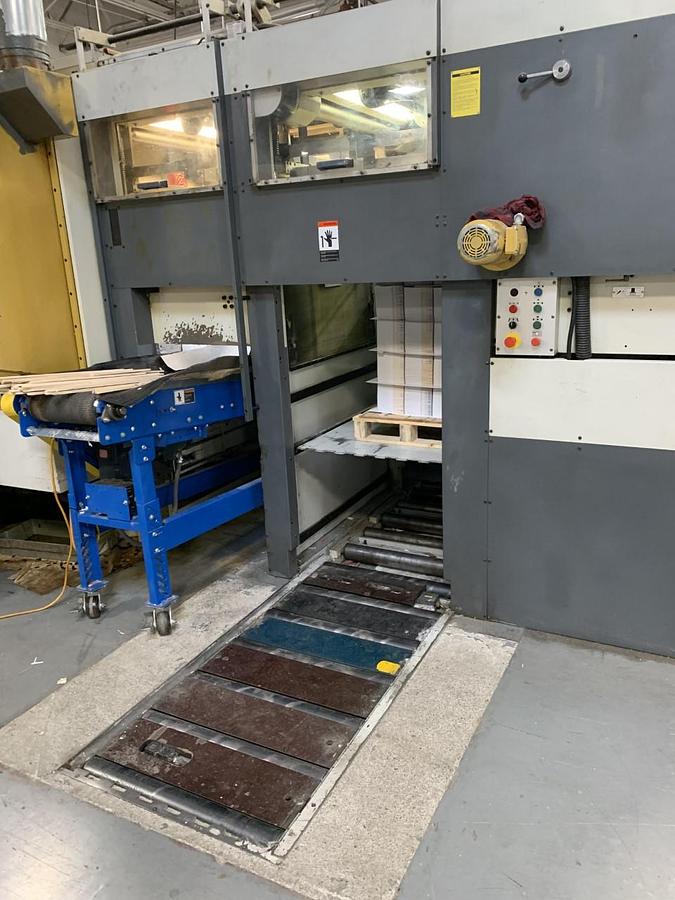

• Non-stop delivery

• Automatic pallet changing system

• Oil conditioner

• Operator platform

• One (1) stripper pre-setting table

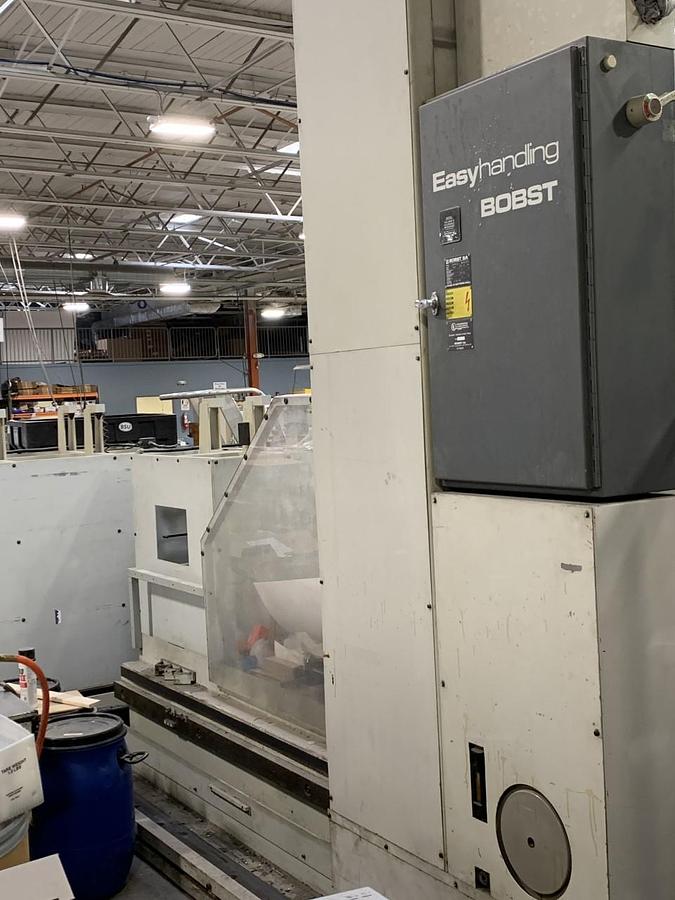

• Bobst Easyhandling system

• One (1) tooling storage cart

• All Bobst manuals

Machine maintained regularly. New AC drive  motor installed in 2018 (value $48,376). Machine is

under power and can be inspected upon request
