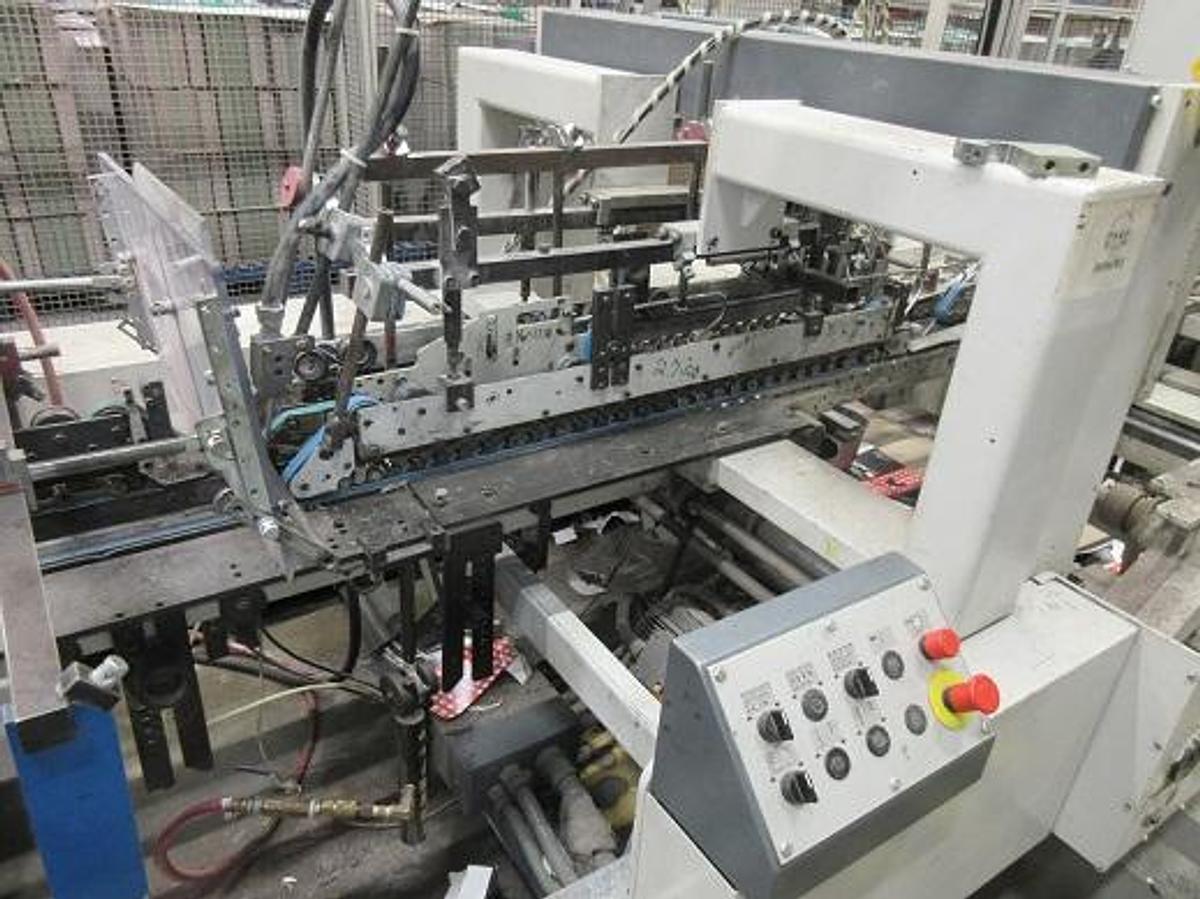

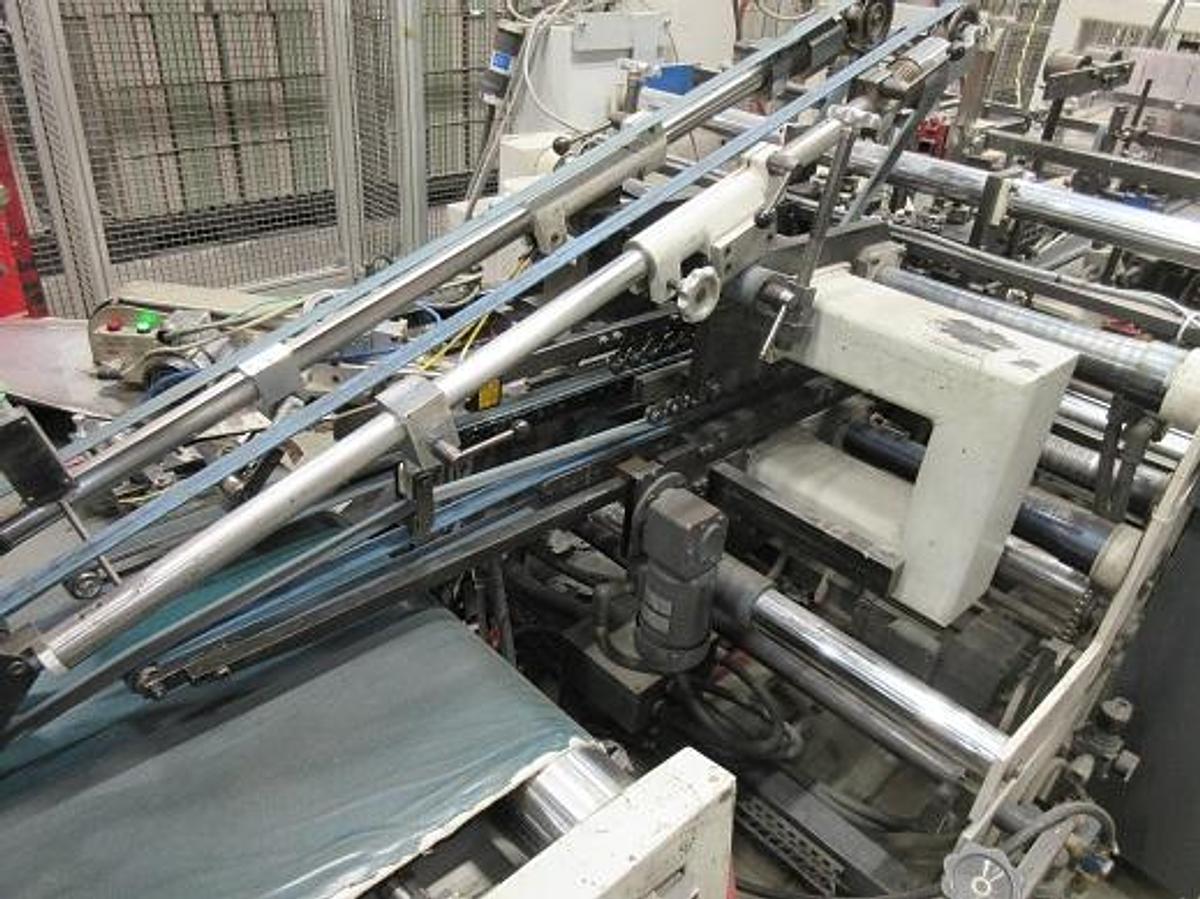

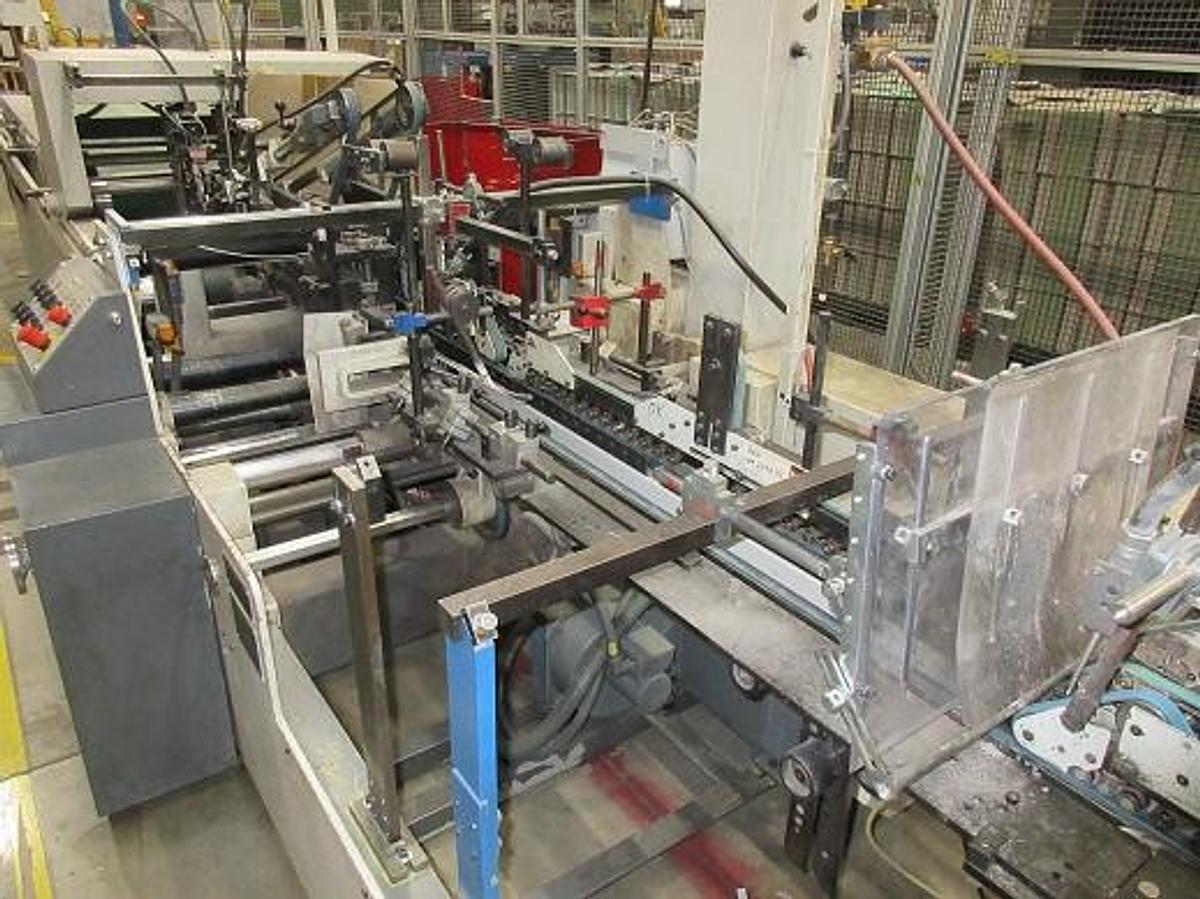

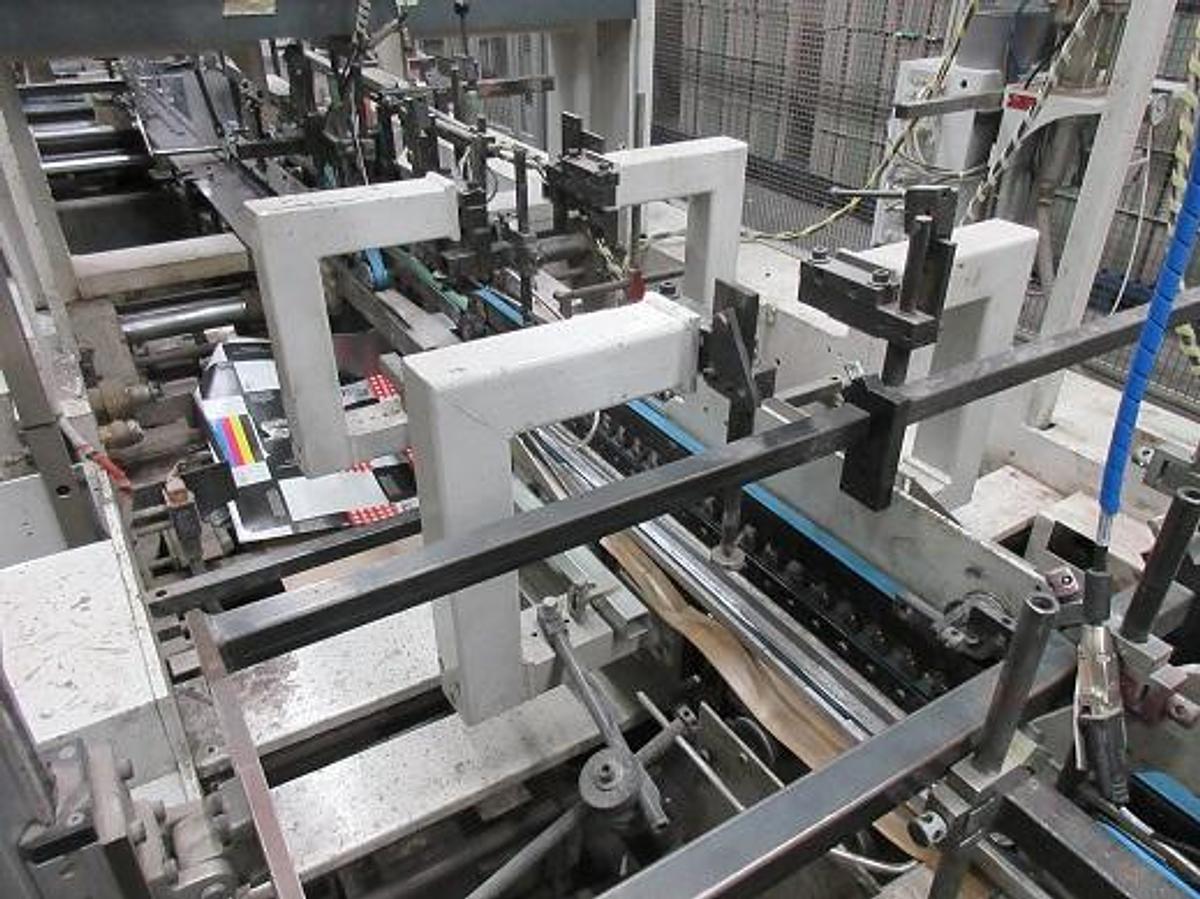

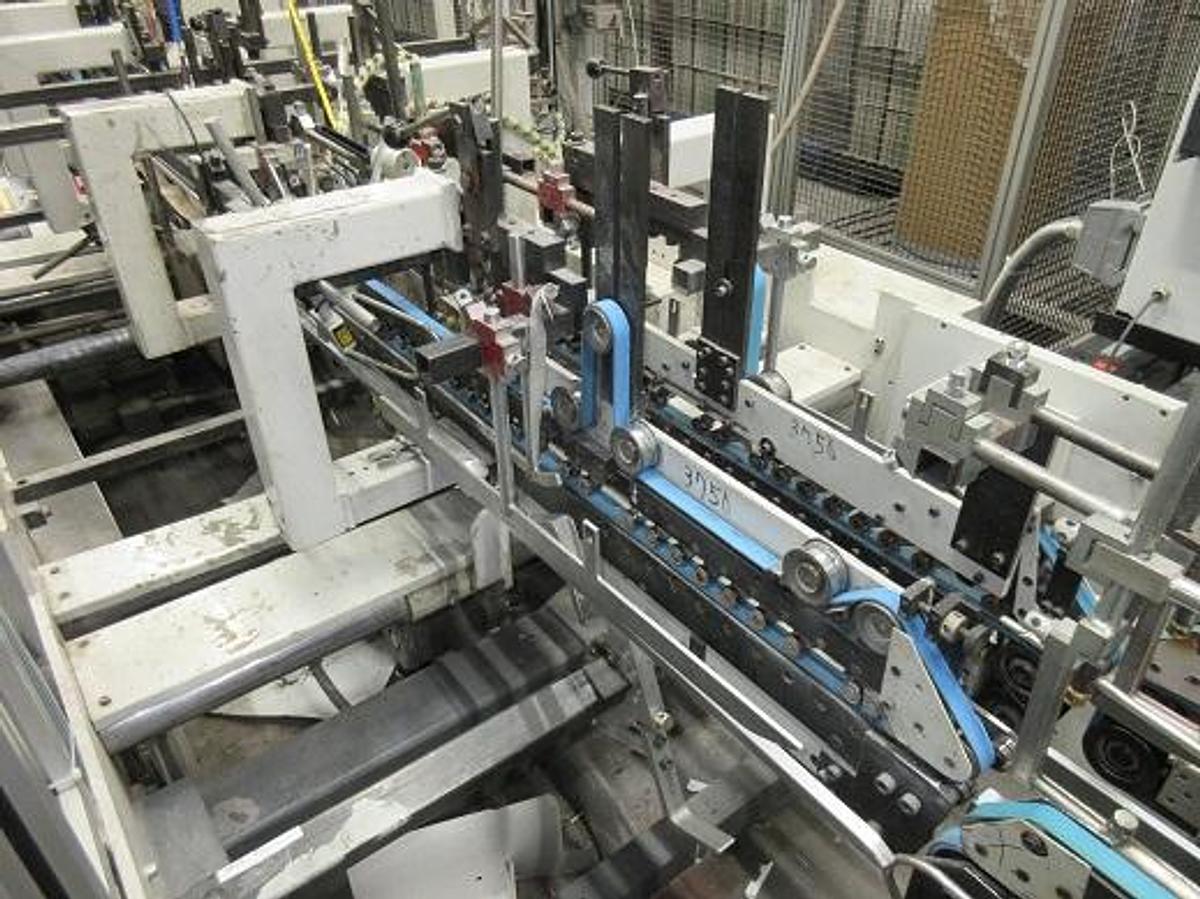

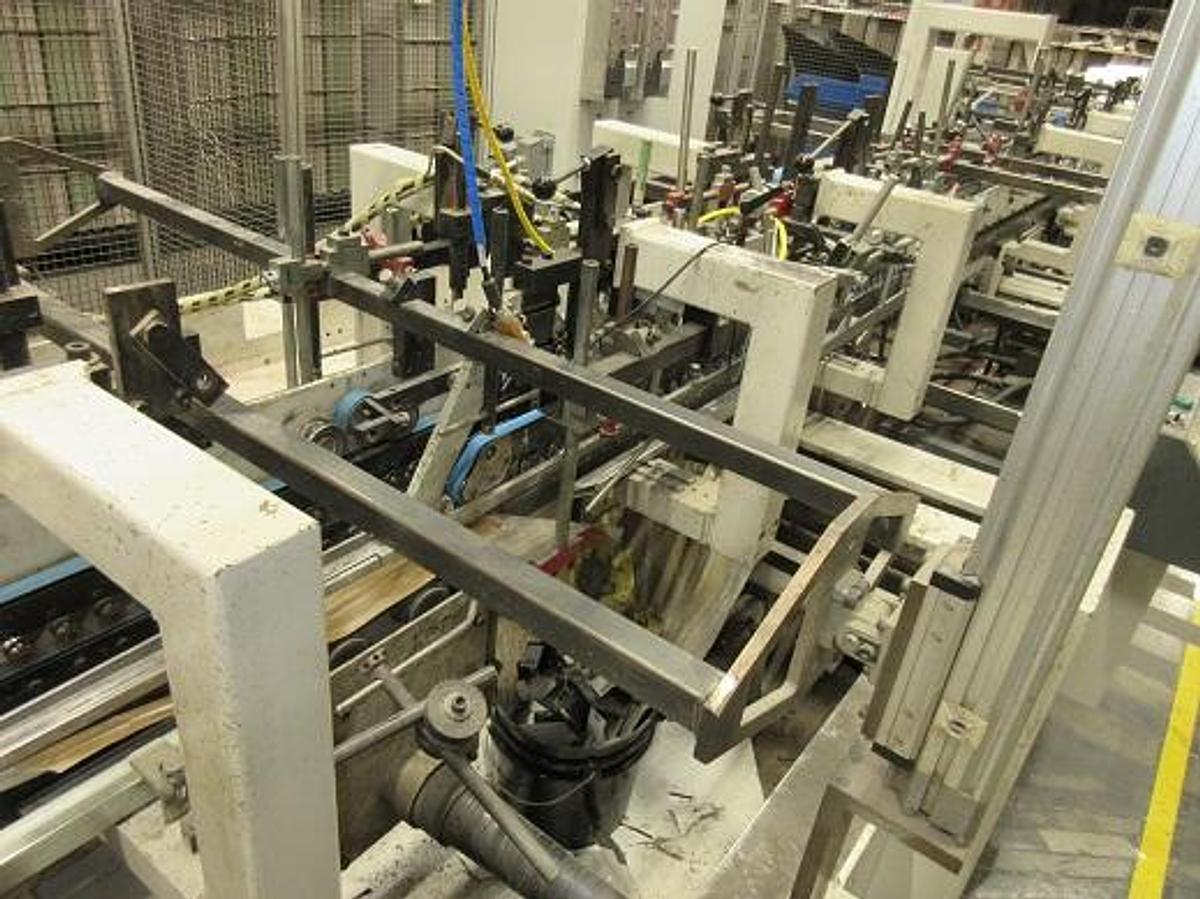

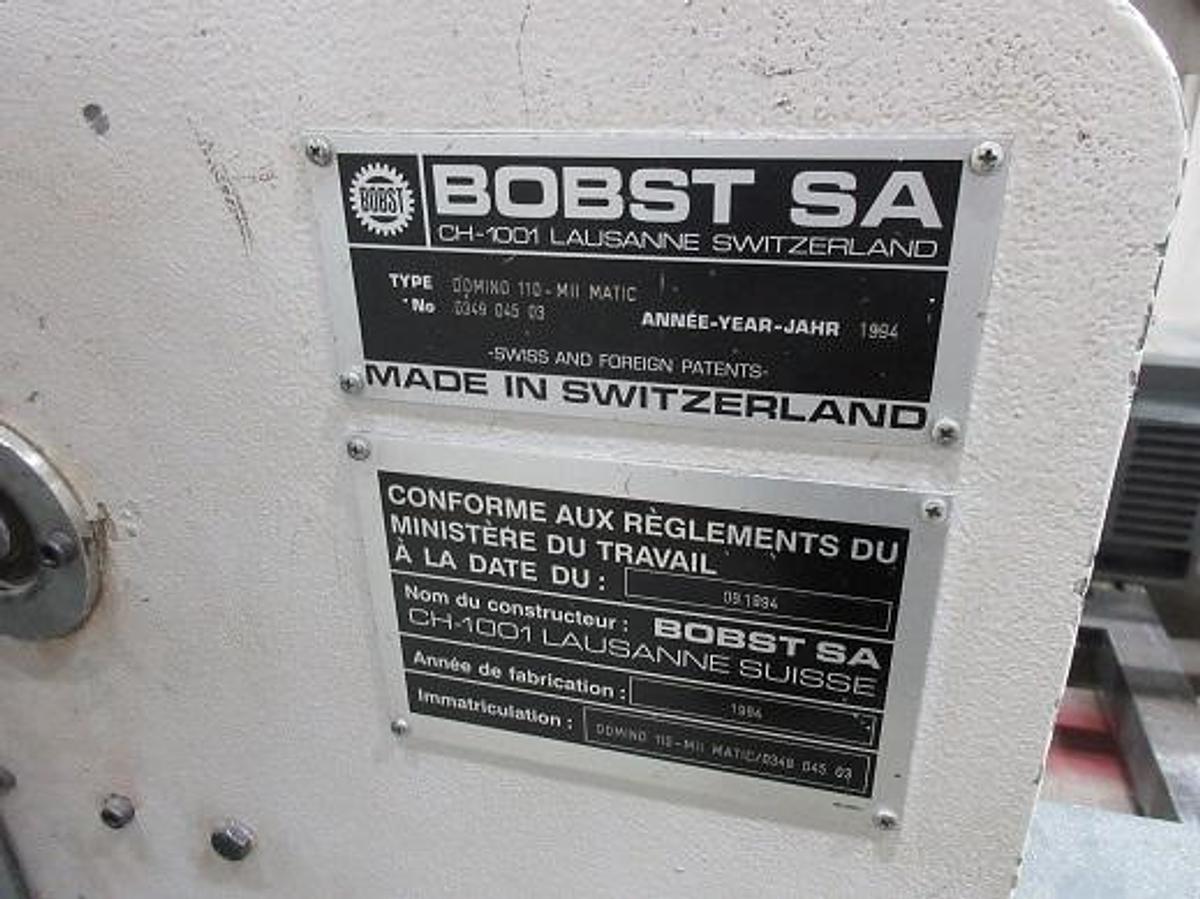

1994 Bobst Domino 110 M-II Folder Gluer with 4/6 corner

1994 Bobst Domino 110 M-II with 4/6 corner

Max. blank width : 1100 mm (43 1/4”)

Min. blank width : 126 mm (5”)

Min. blank width (with mini attachment): 56 mm (2 ¼”)

Max. blank length : 800 mm (31 ½”)

Min. blank length : 60 mm (2 3/8”)

Processed materials : Up to 700 gsm and E & B flute

Operation speed from 20 – 400 m/Min.

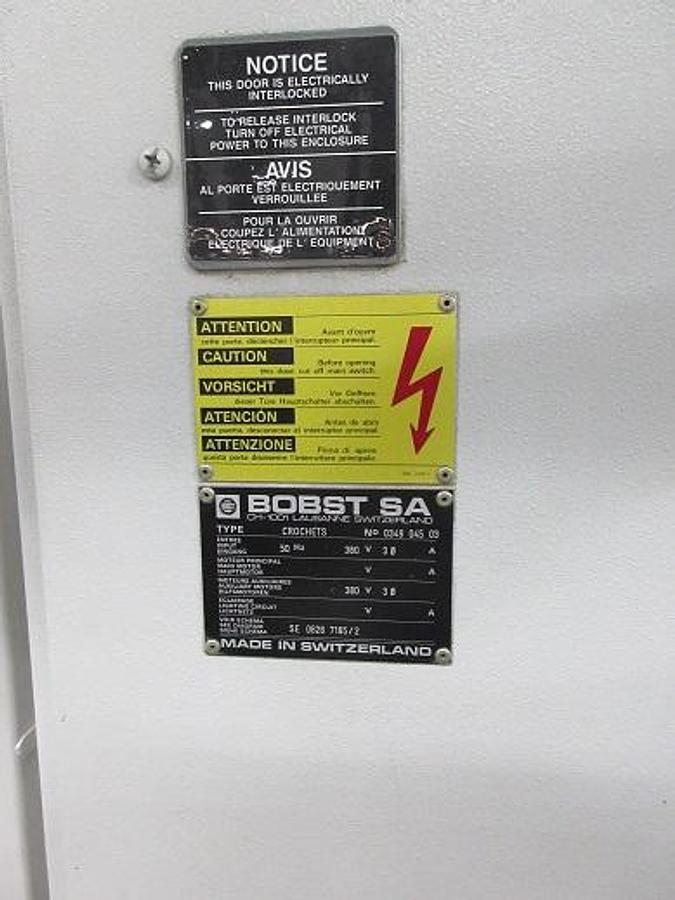

Machine voltage : 380 V / 85.1 Amp.

Equipped for straight-line, lock-bottom, double wall and 4 & 6 corner cartons

Equipment details :

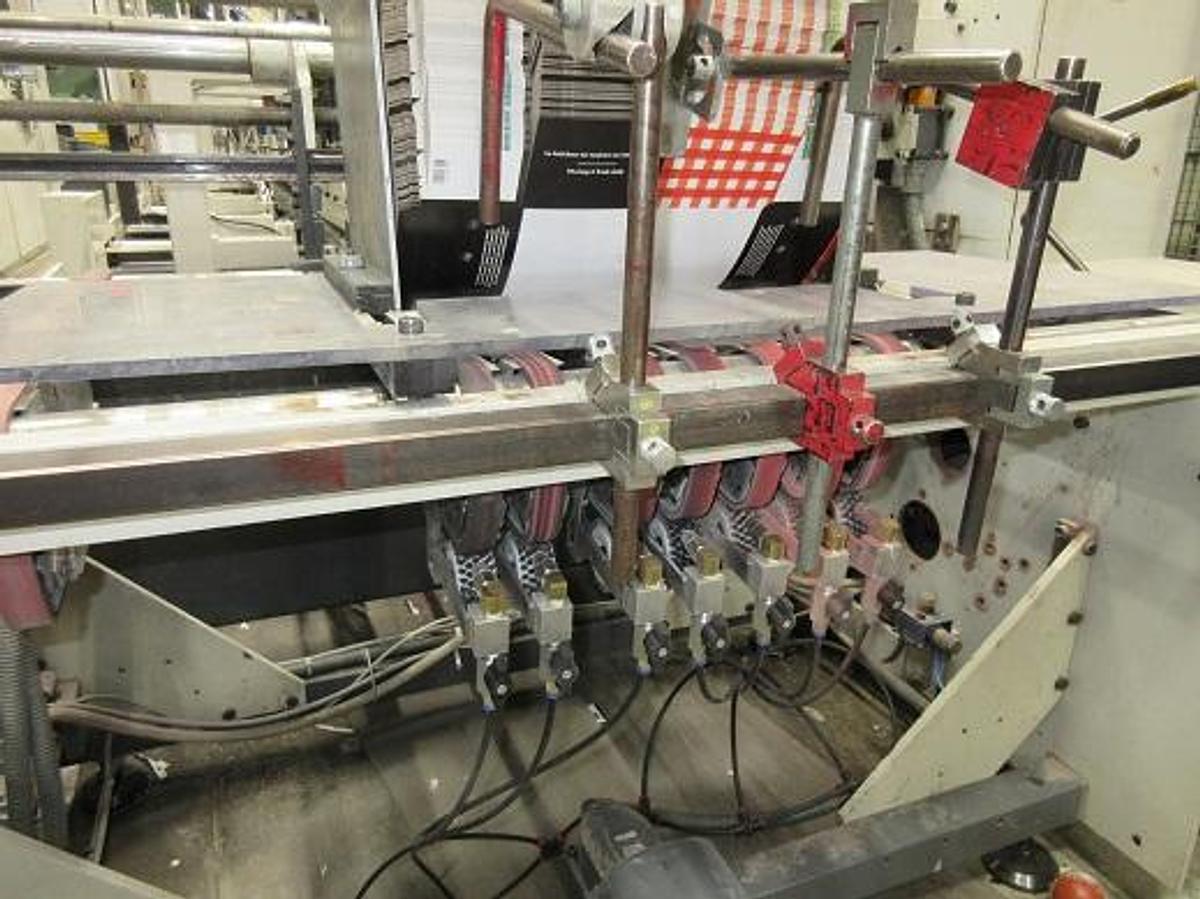

8 feed belts with dust removal device, Feeder with pile vibrator

Pre-breaker carriers, left and right

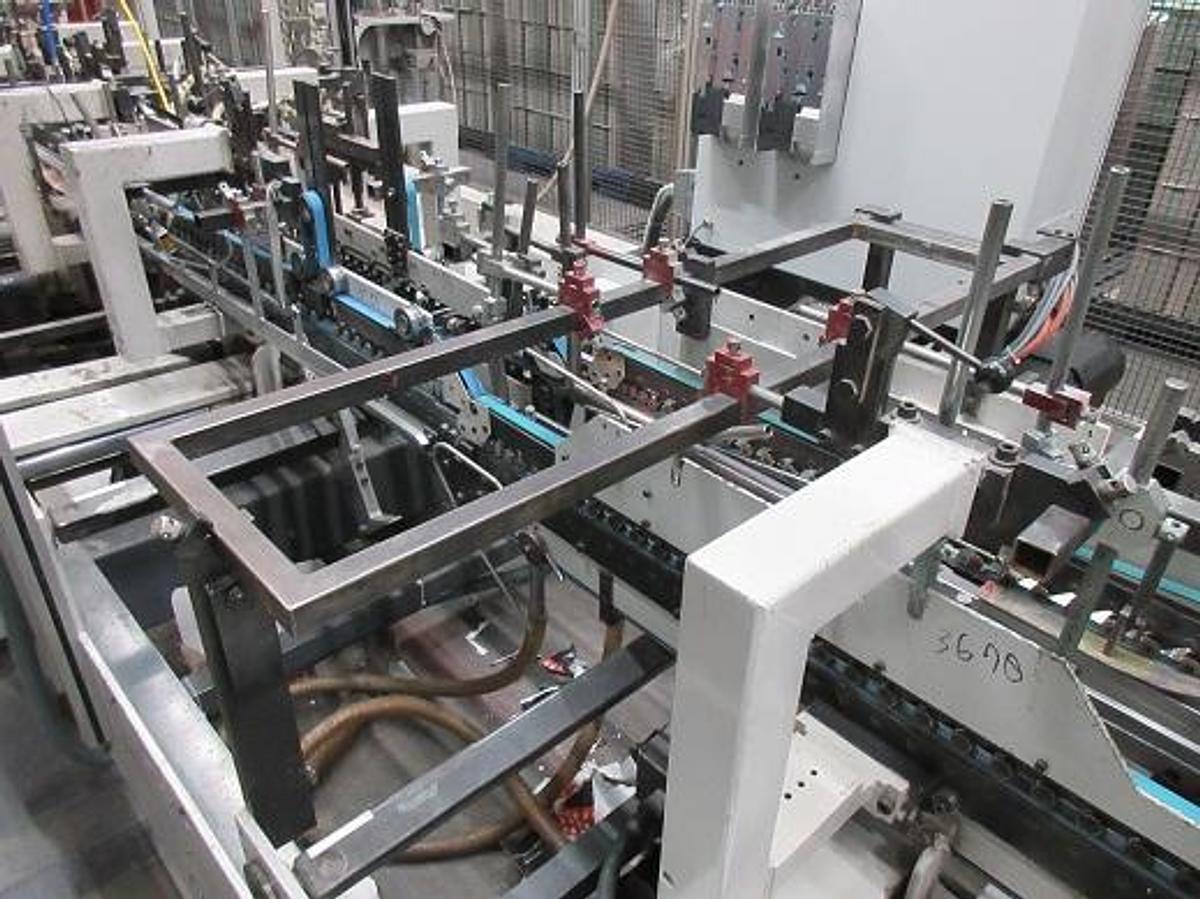

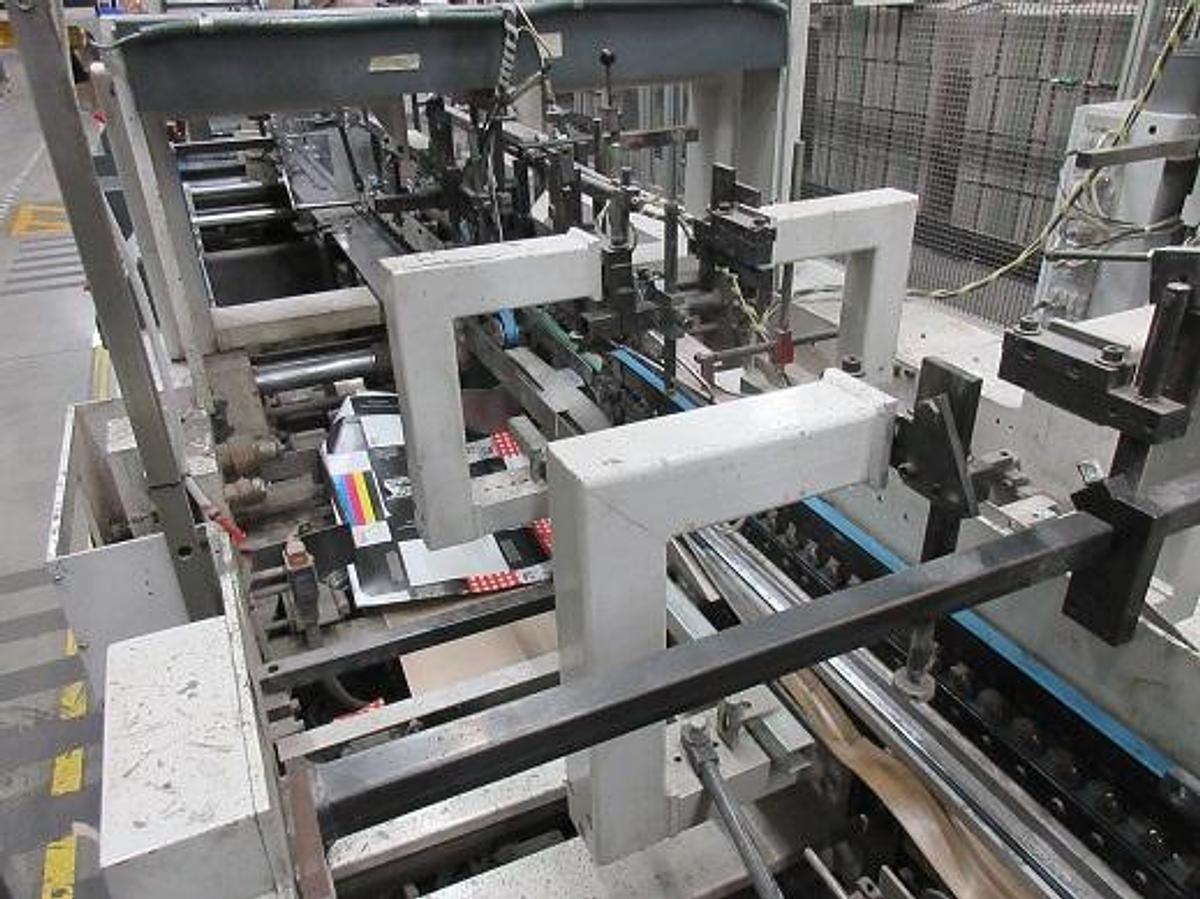

Folding section carriers, left and right

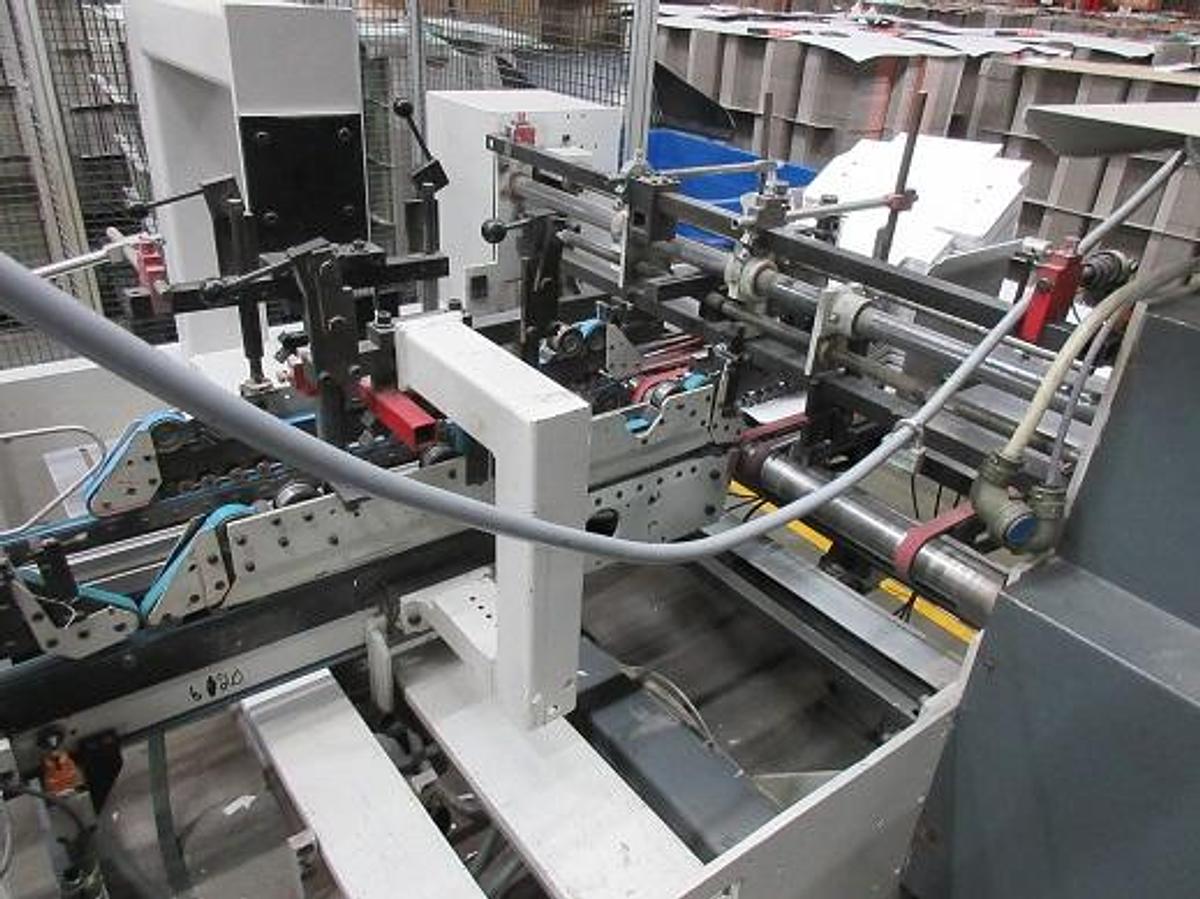

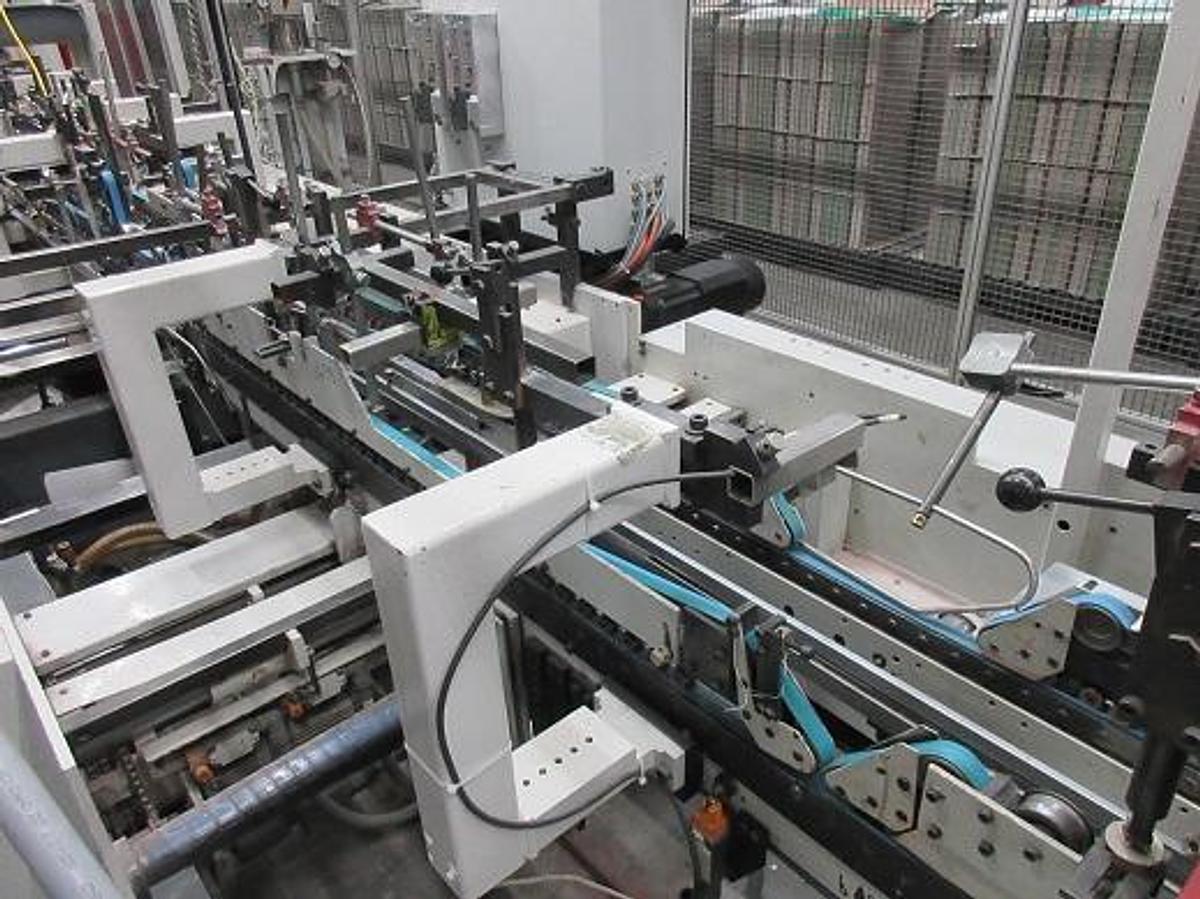

Central transport conveyors in pre-fold and central conveyors in folding section

Lower left disc gluing unit

Manual format adjustment (Matic system and motors were removed)

New servo backfold shafts and Baumuller motors from Bobst (current value US

$40,000) installed in 2012

Upper hold down cables for 4 corner cartons with lid

5 or 6 backfold hooks for 4/6 corner included

Lower transfer station motorised and adjustable

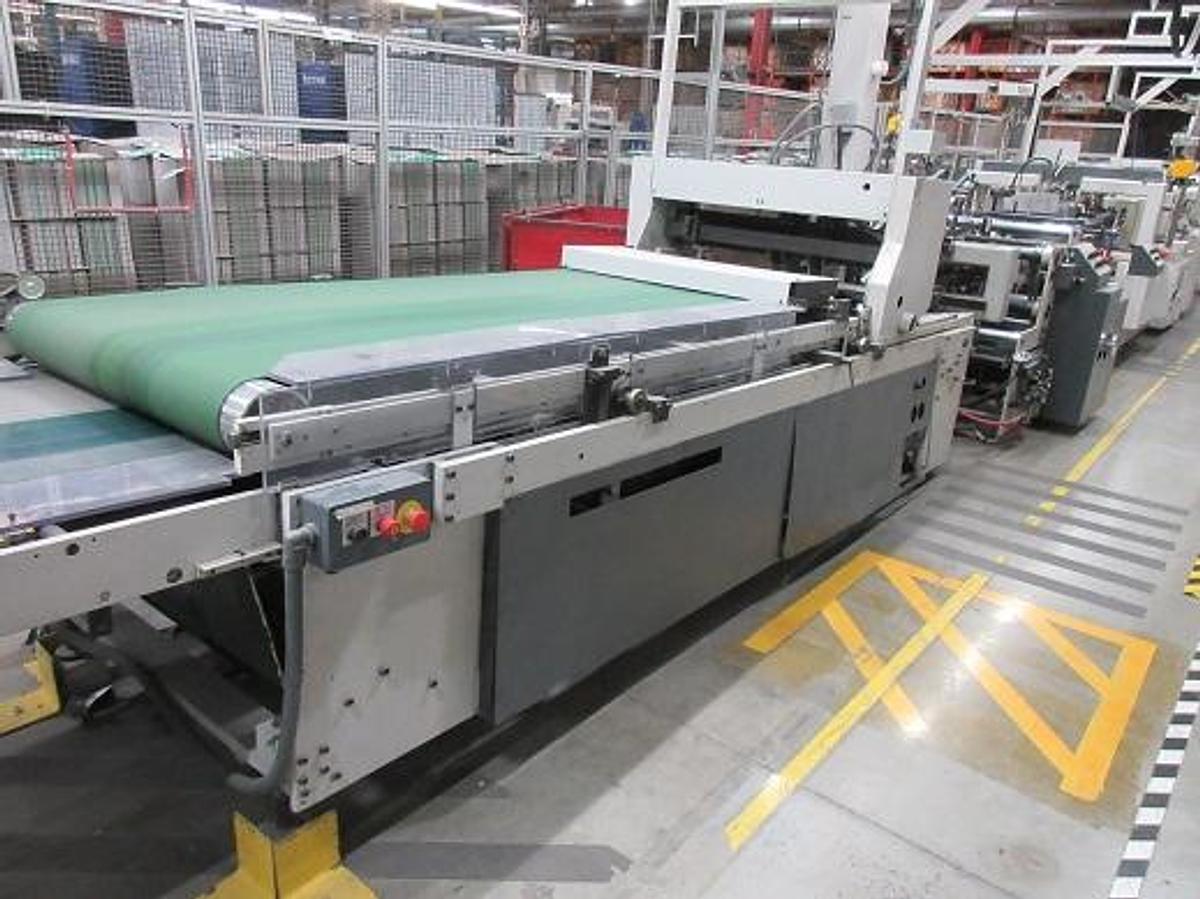

Pneumatic kicker and counter at delivery conveyor

Pneumatic controlled press station

Operator remote control

New belts installed in 2025. Machine is not under power. Video is available of

machine in production. All Bobst mechanical and electrical books are included.
