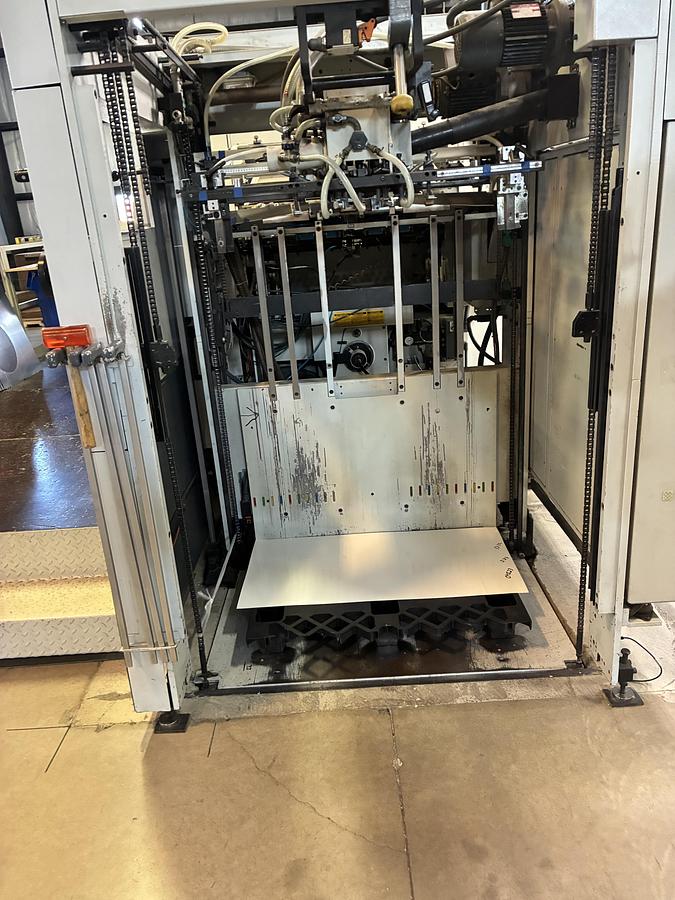

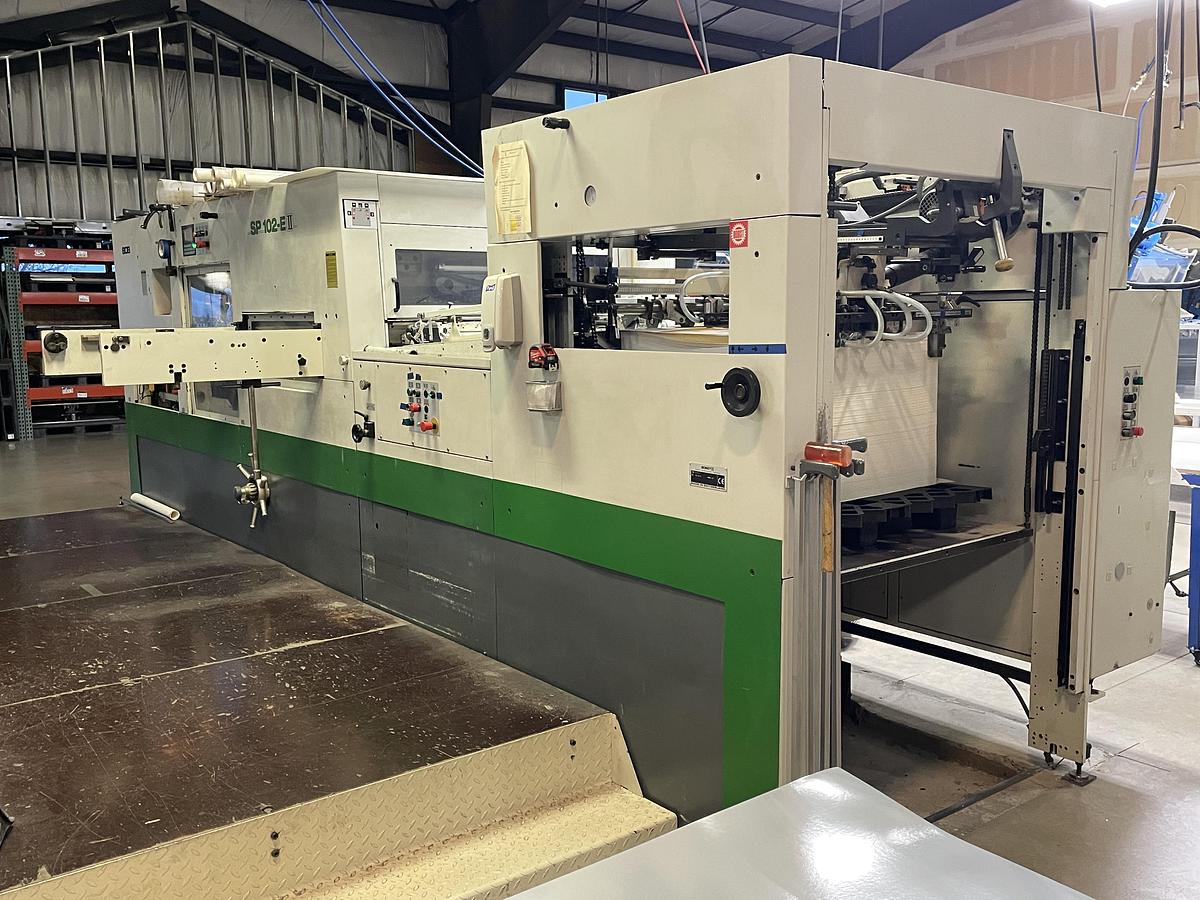

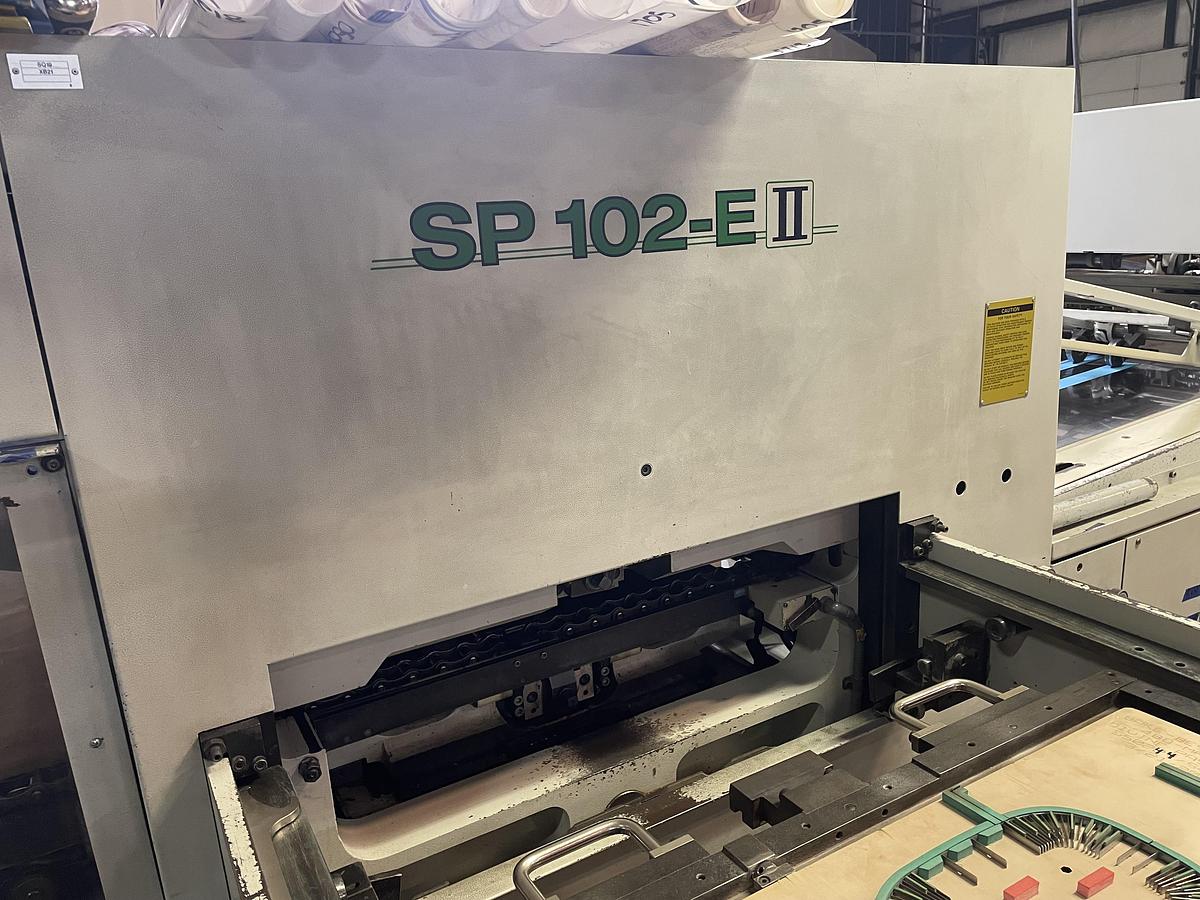

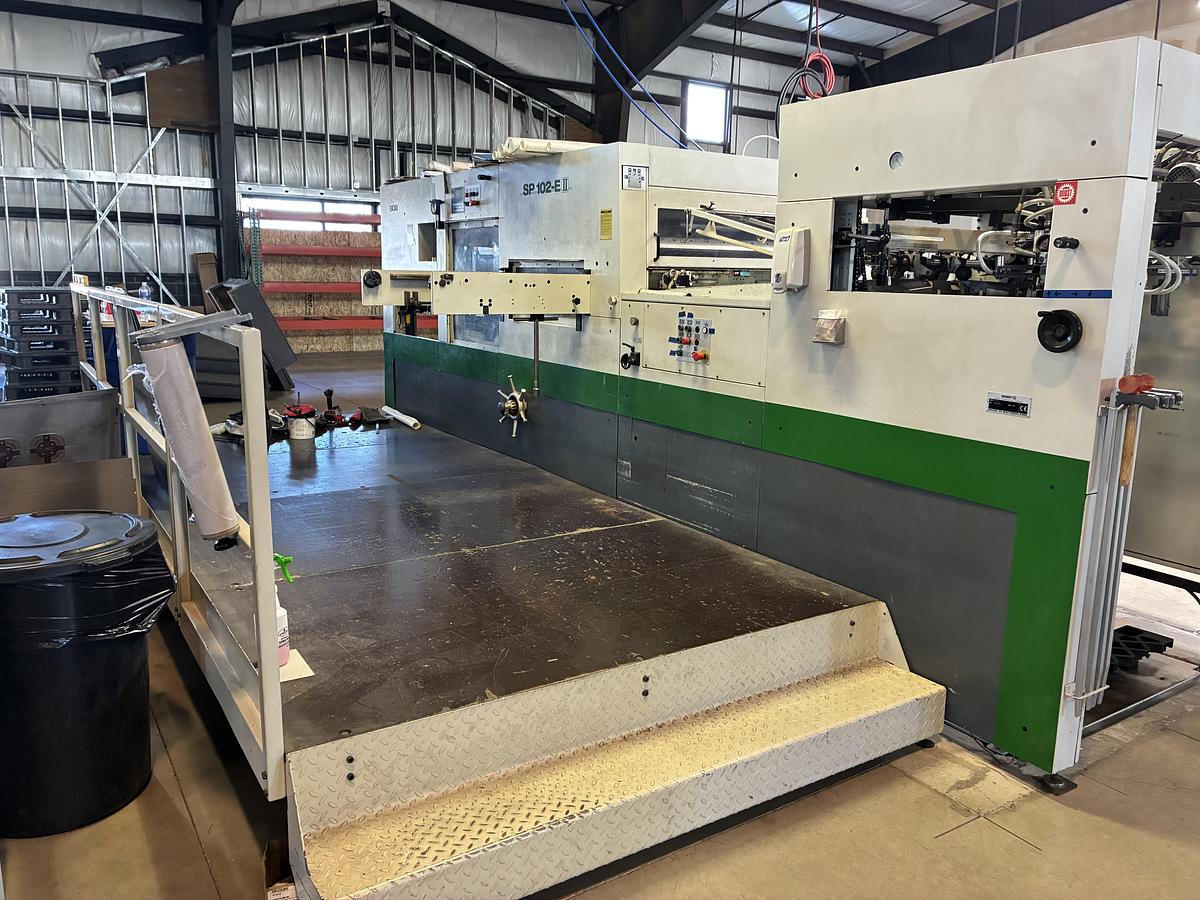

2002 Bobst SP-102E-II Autoplaten Die Cutter

2002 Bobst SP-102E-II Autoplaten Die Cutter

Max Sheet Size: 40 1/8” x 28 3/8” (1020 mm x 720 mm)

Min Sheet Size: 15 ¾” x 13 ¾” (400 mm x 350 mm)

Max Cutting Force: 250 TON

Processing Capabilities:

Paper: Min. 80g/m²

Cardboard: 250 – 2000 g/m²

Corrugated Board: E & B flute, max. 4 mm thickness

Cutting Area:

With front trim: Max. 705 x 1020 mm

Without front trim: Max. 720 x 1020 mm

Production Speed: Up to 7,500 sheets per hour (varies based on material and job type)

Key Features:

Feeder:

Standard feeder with all necessary equipment

Non-Stop Feeder System for uninterrupted production

Pile Height at Feeder:

With non-stop system: Max. 1100 mm

Without non-stop system: Max. 1400 mm

Continuous Feed

OS and OOP Pull Guides

1 Chase, 1 Plate, 1 Resocel w/Micro Adjust

1 Set of Stripping Frames - Bars and Pins

Sheet Blow Down for Thin Paper

Continuous Delivery

New chains and gripper bar end fittings 2022
