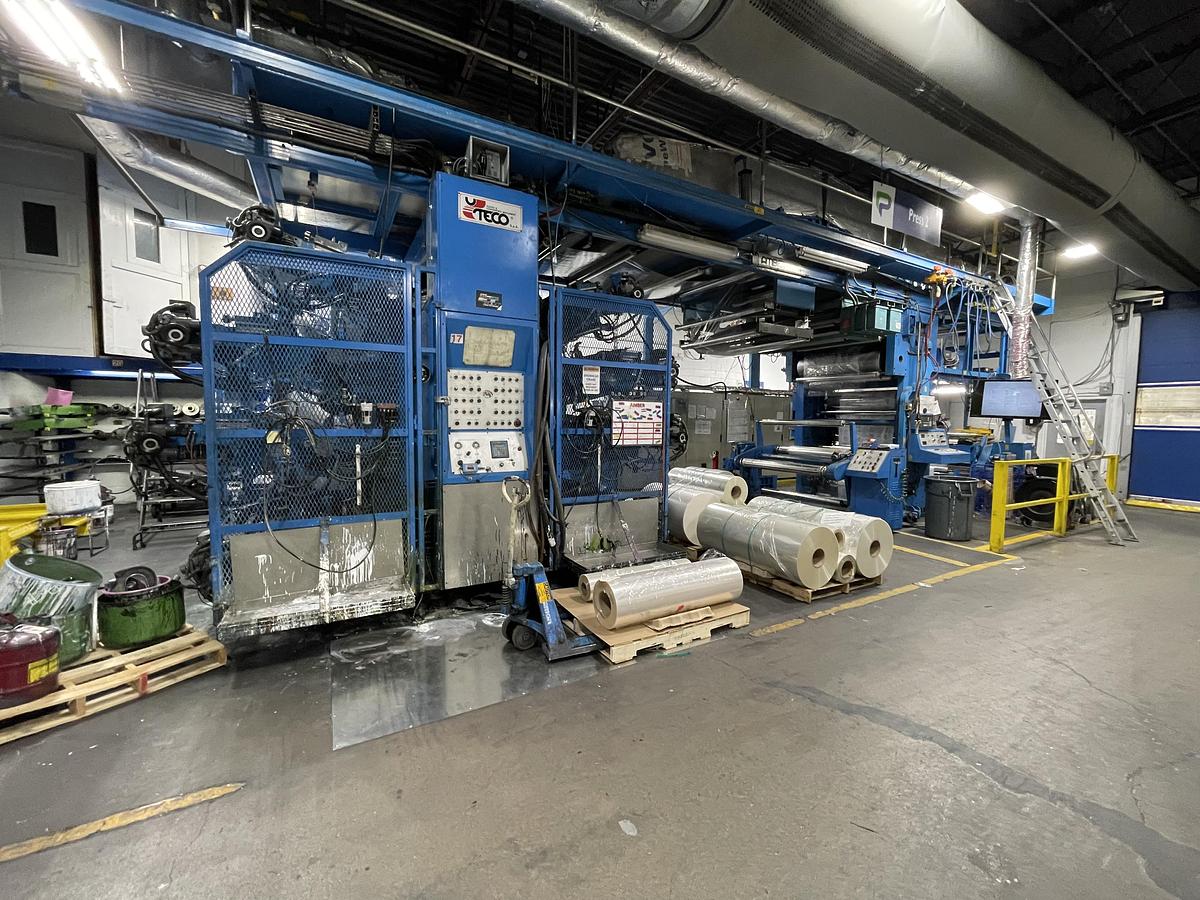

1995 Uteco CI Press Amber 808 RR

1995 Uteco Amber 808 RR

Model: 140

8 color

Geared machine

Web width: 1450mm

Production speed: 250m/min

Material: PE, PP, LDPE, HDPE, OPP, PET, OPA BOPP, Nylon, Metalized, Composite

Material thickness: 0.60mm

Max. mechanical speed: 275m/min

Drying system: Natural Gas.  Between color deck and tunnel, IMECO

Web guide system: Coast Controls pneumatic unwind guide model CRPP50; Rewind edge guide BST AccuWeb Micro 1000, actuator MTR3108

Corona treatment: Enercon corona treater, Station model and serial LM3438-53, 10269-4A

Doctor blades: 13 doctor blade chambers

Ink Pumps: 10 Graymills pneumatic pumps

Autowash: No

Unwind diam. max.: 760mm

Rewind diam. max.: 715mm

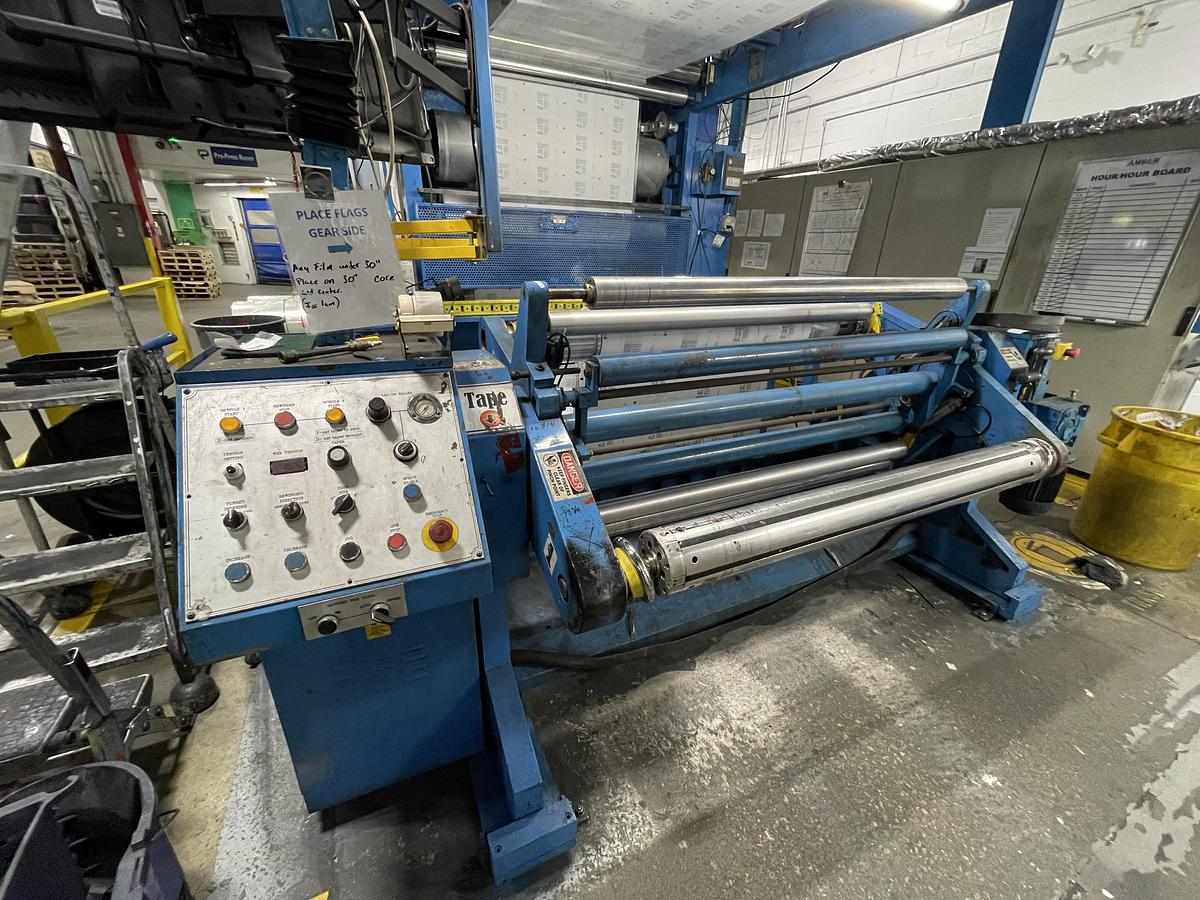

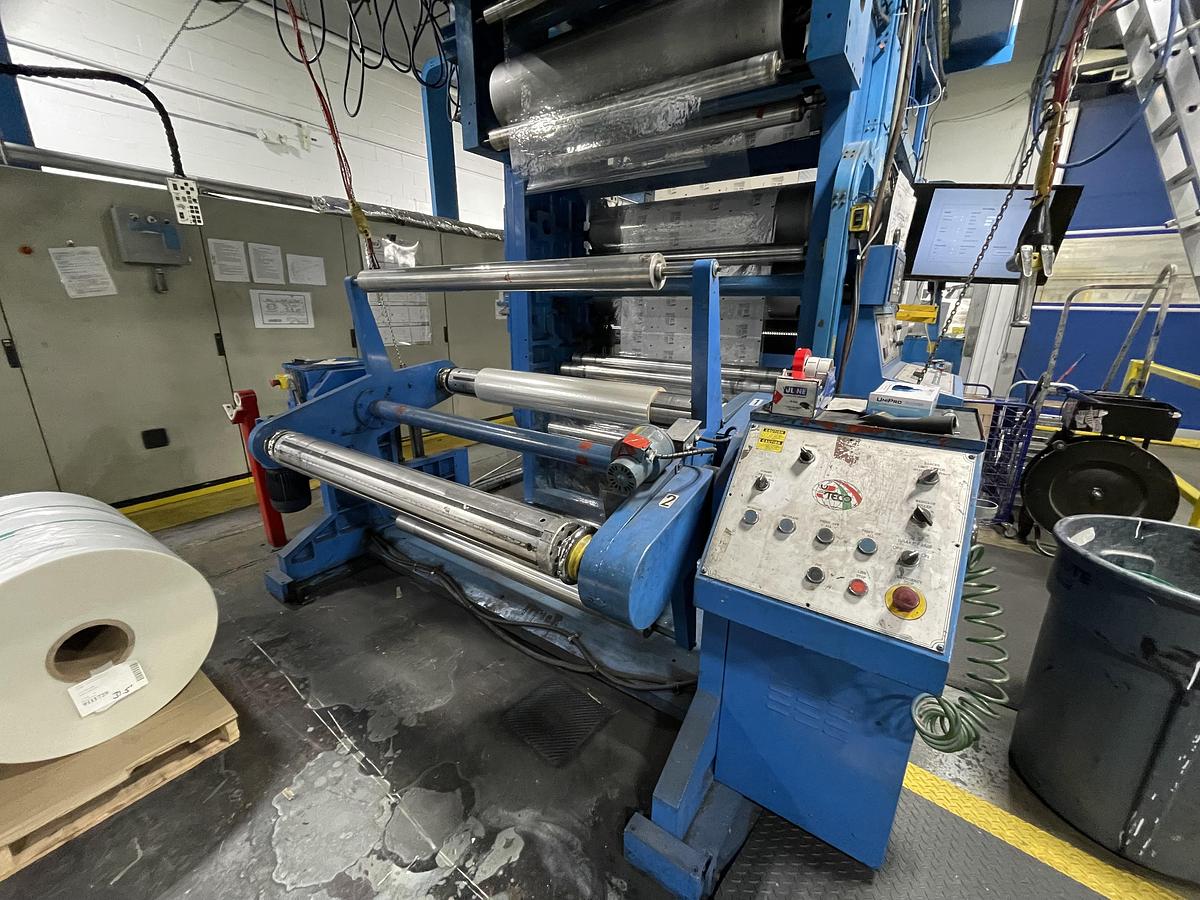

Rewinder type: Dual shaft rotating

Hydraulic operated plate cylinder caps, print on/off, anilox drive motors

6” and 3” Maxcess External Element Pneumatic Roll Shafts

with Heaford model MW Cobra 2000. Plate Mounter
