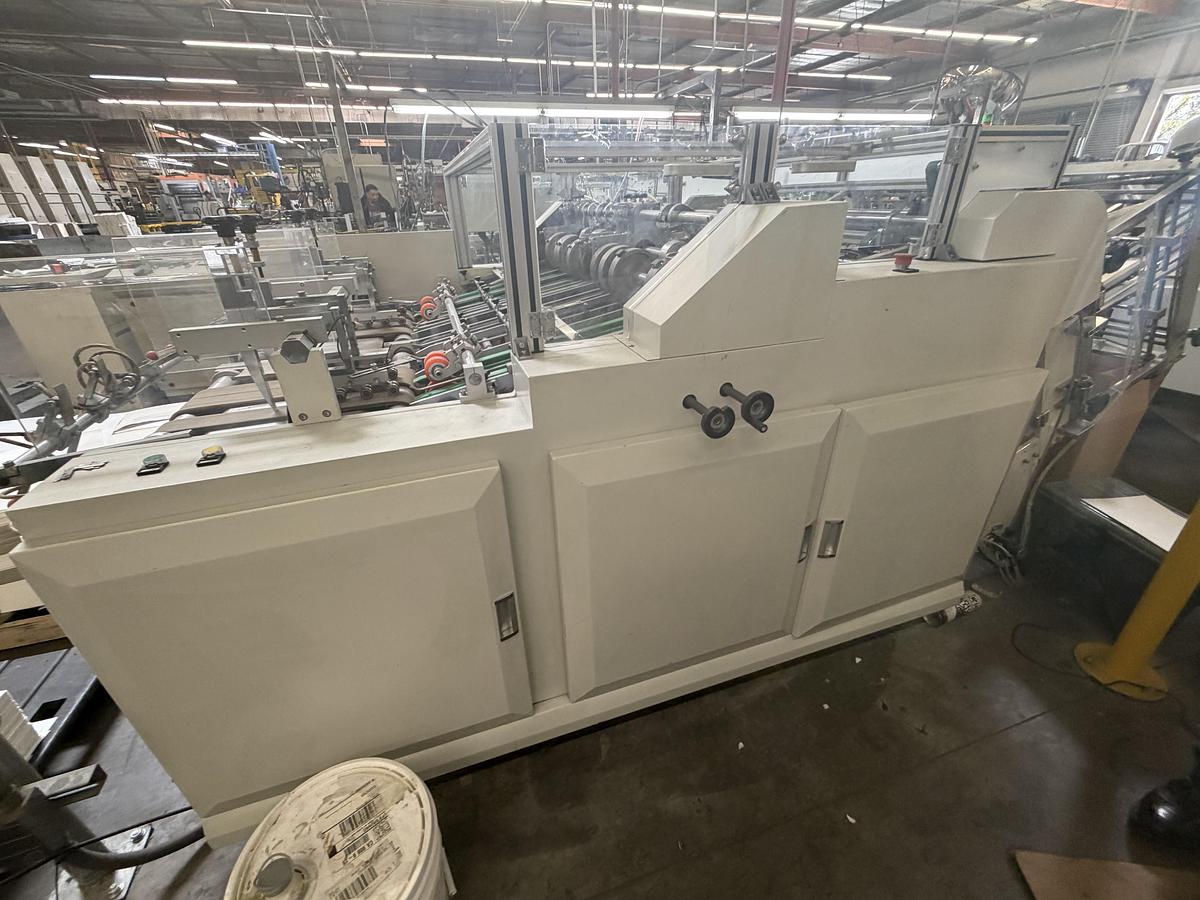

FEIDA ZX-1600 is a double-lane Tray Former

The FEIDA ZX-1600 is a double-lane, high-efficiency automatic carton box and tray forming machine frequently used for producing food packaging, such as hamburger boxes, French fry containers, and take-out trays. It is designed to replace manual, two-step folding-gluing processes with a one-time compression molding system.

convertingequip-inc.com

 +1

Key Specifications of FEIDA ZX-1600

• Capacity: 100-320 pieces/min (some listings indicate up to 550 pieces/min depending on model year/config).
• Production Method: Double Lane (can produce two trays at once).
• Material: Suitable for paperboard, cardboard, and corrugated paper (200-620gsm/up to 1.6mm thickness).
• Box Dimensions: 100-450mm (Length), 100-600mm (Width), 15-200mm (Height).
• Machine Dimensions: 3600 × 1850 × 1700mm.
• Power: 380V/220V, 3-phase, 6kW.
• Features: PLC control, water-based adhesive, and quick mold changeover for different box sizes.
