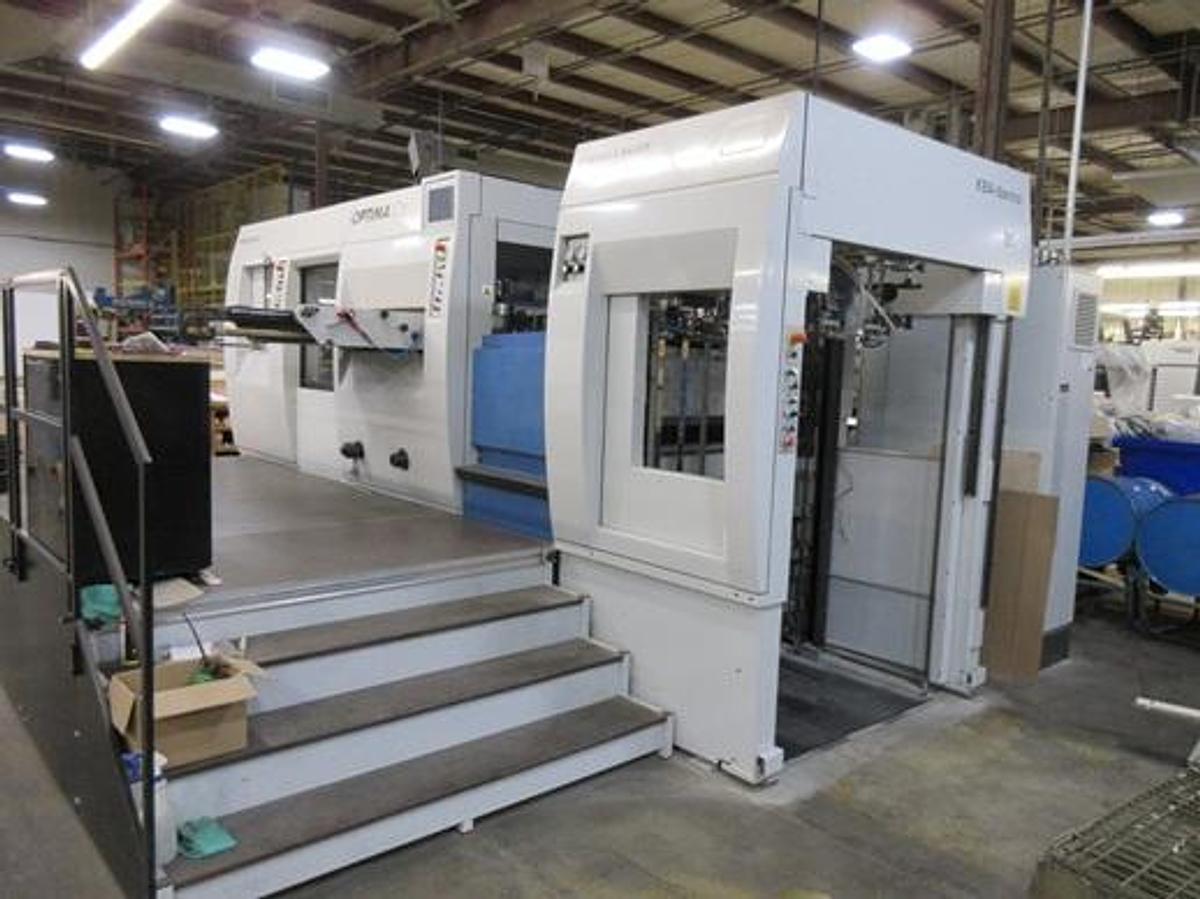

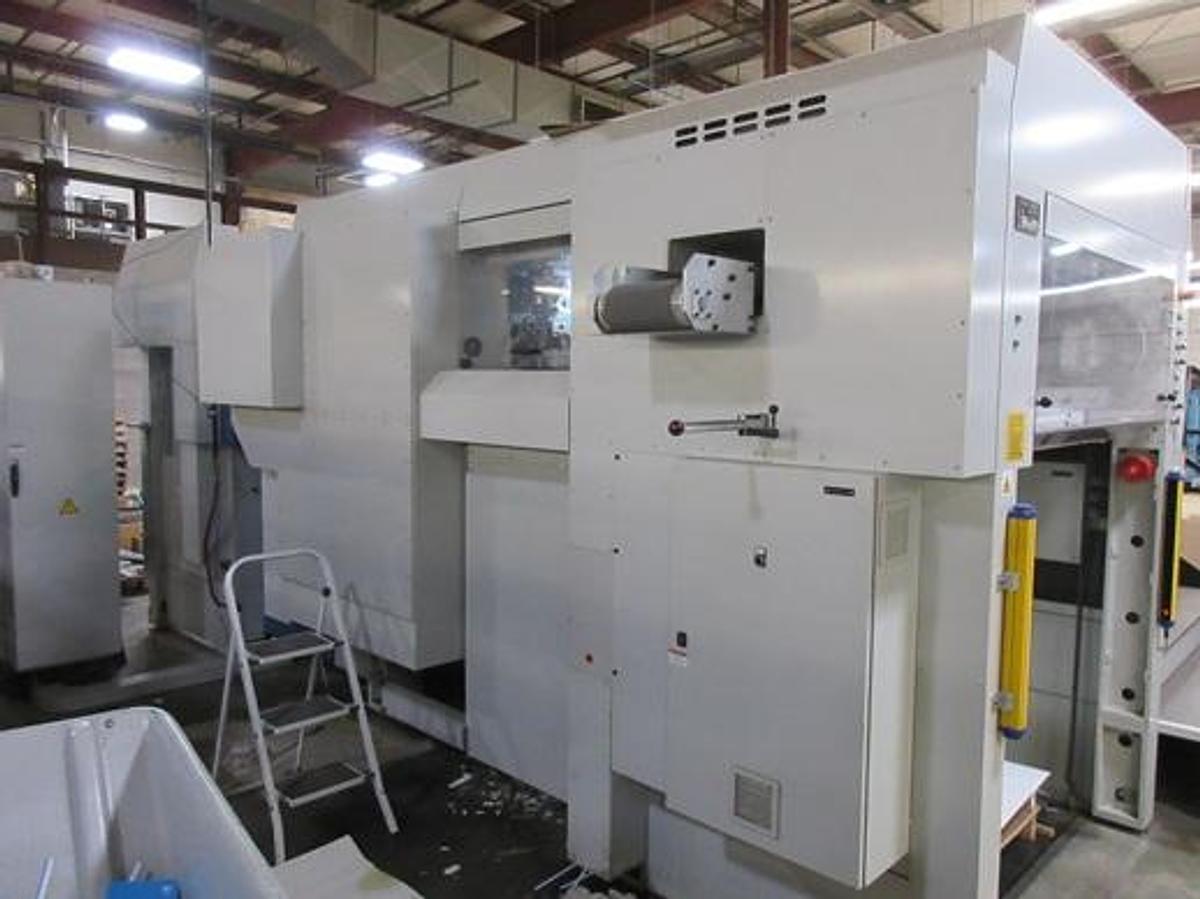

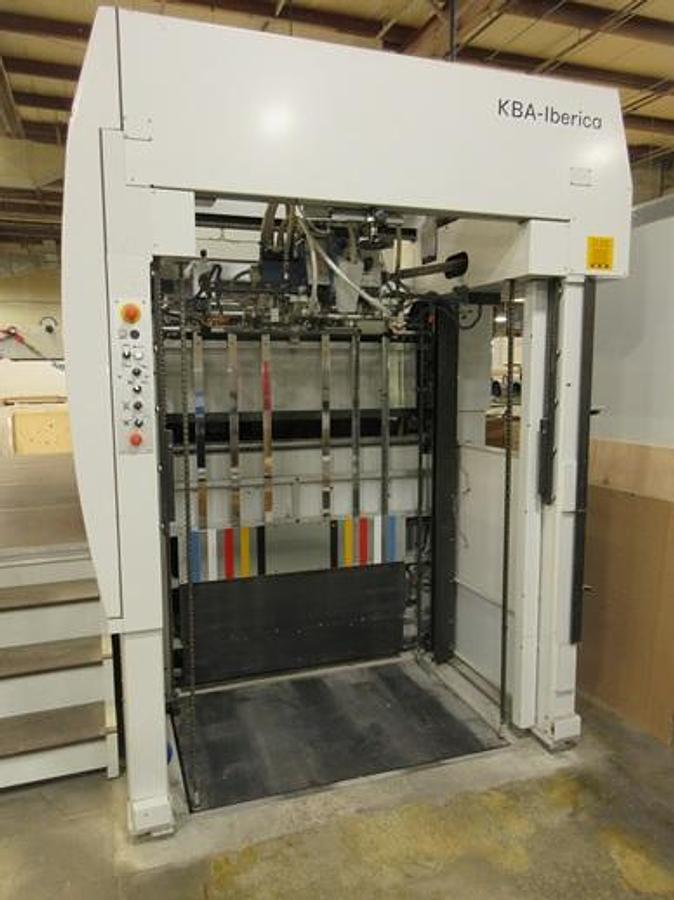

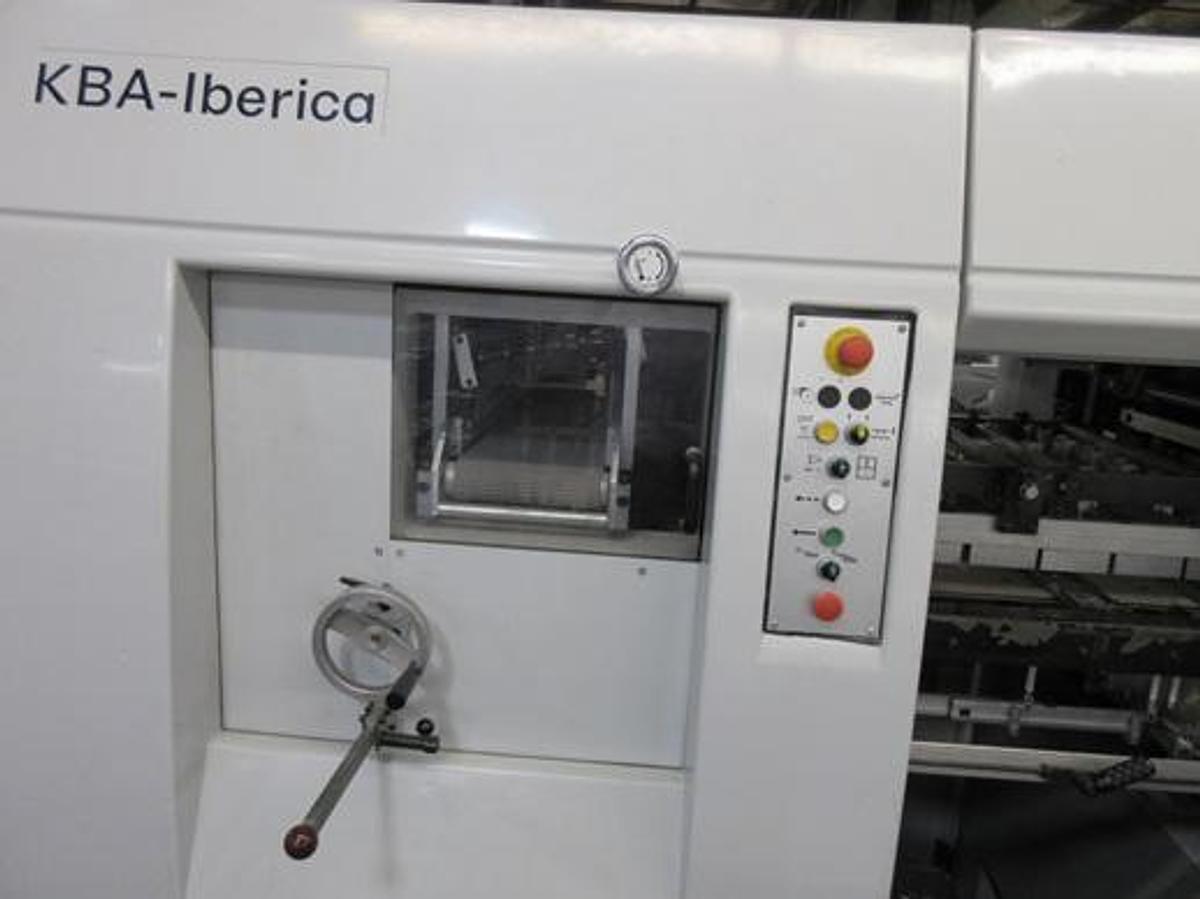

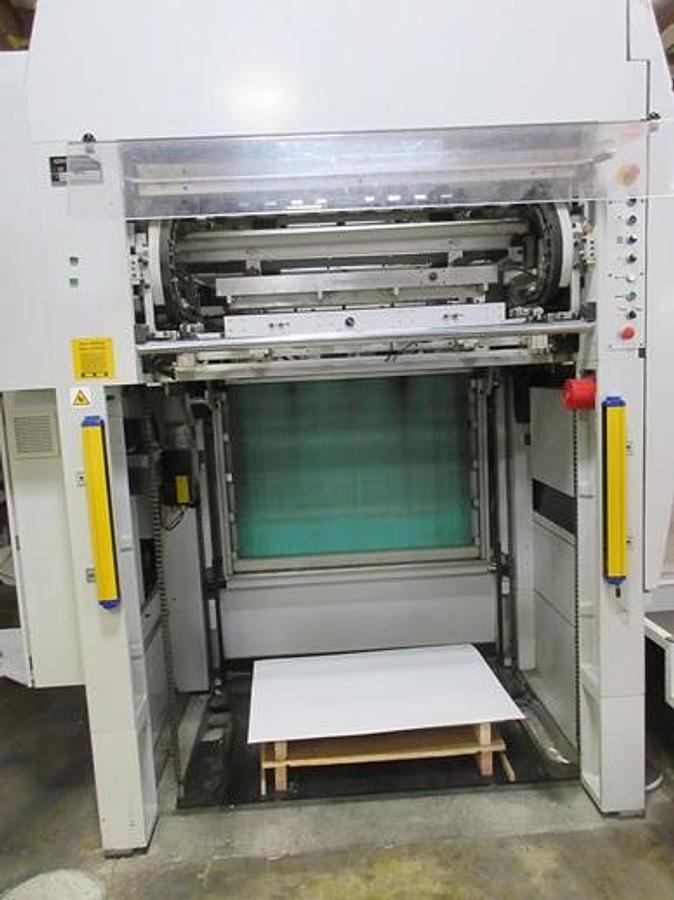

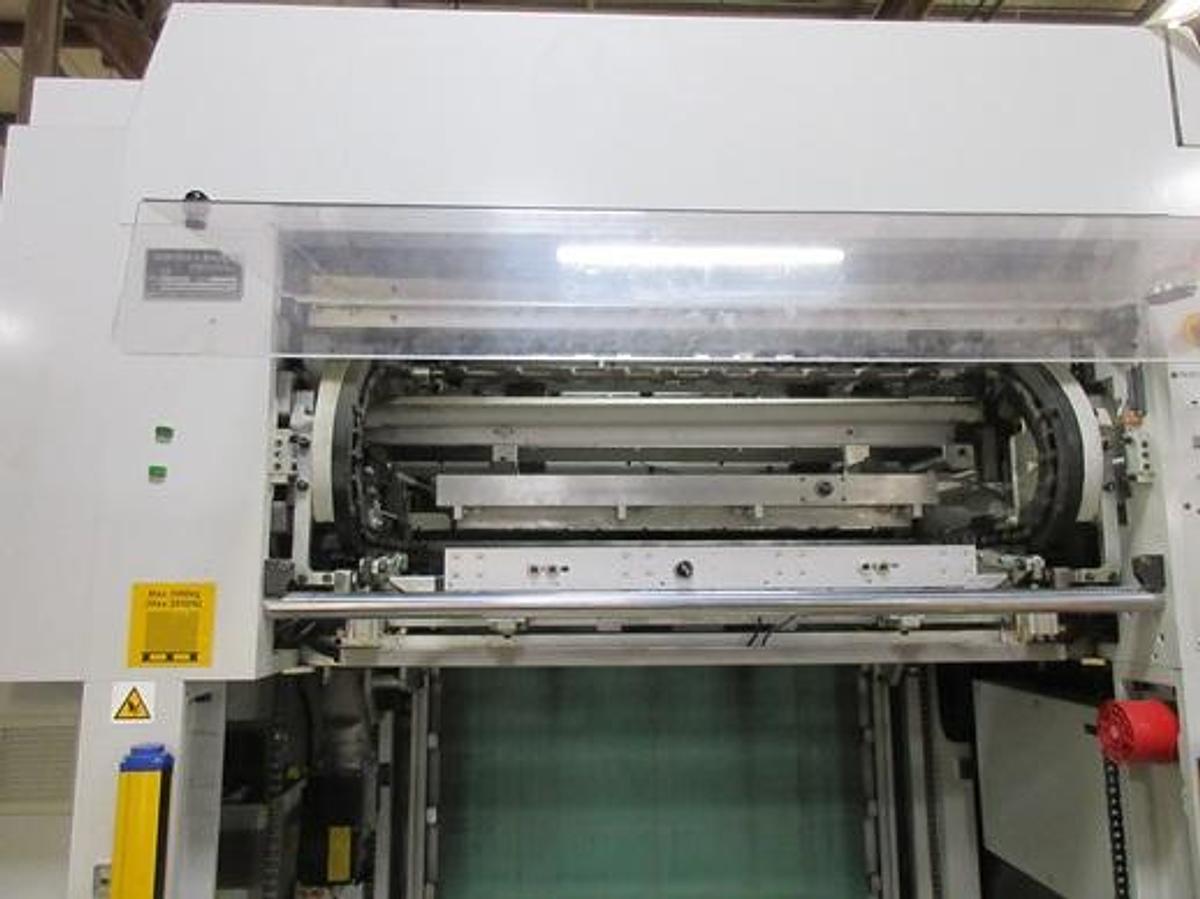

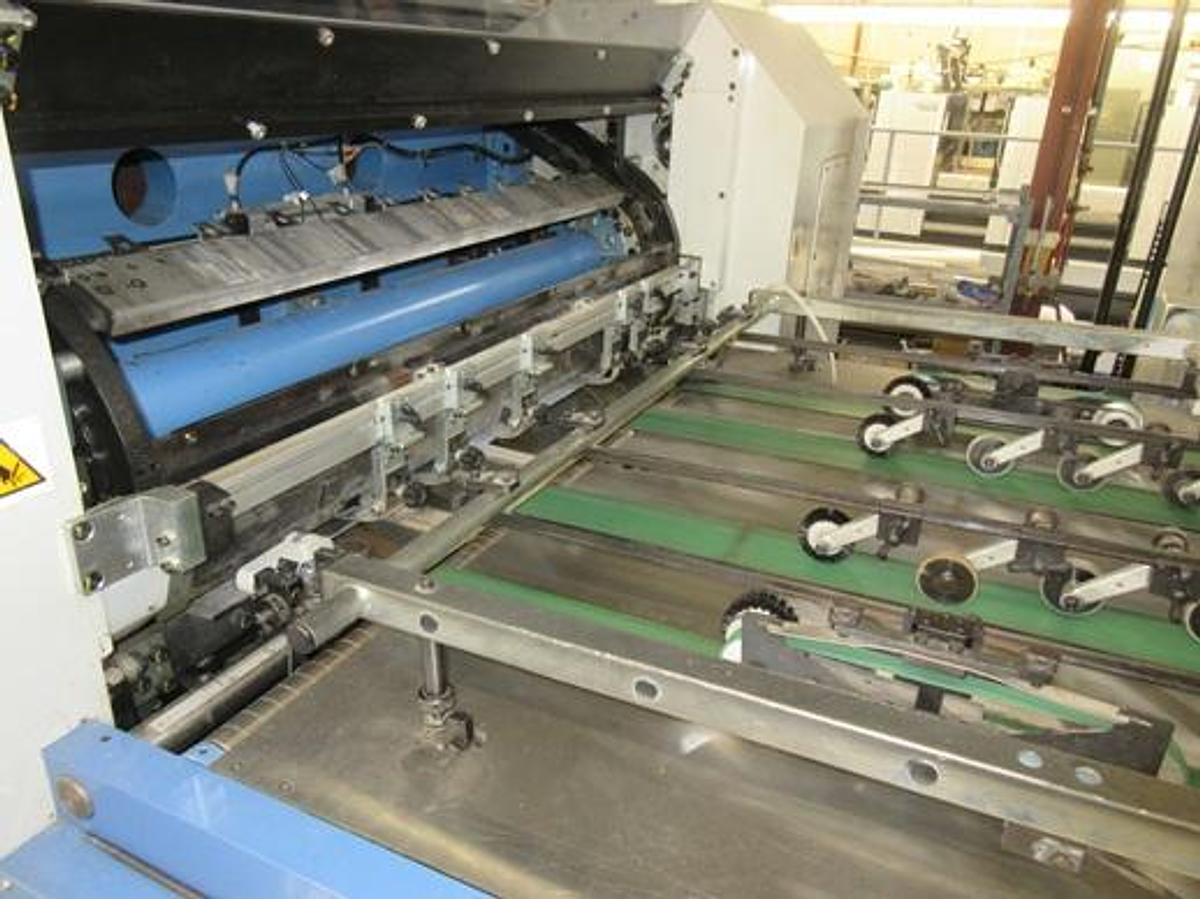

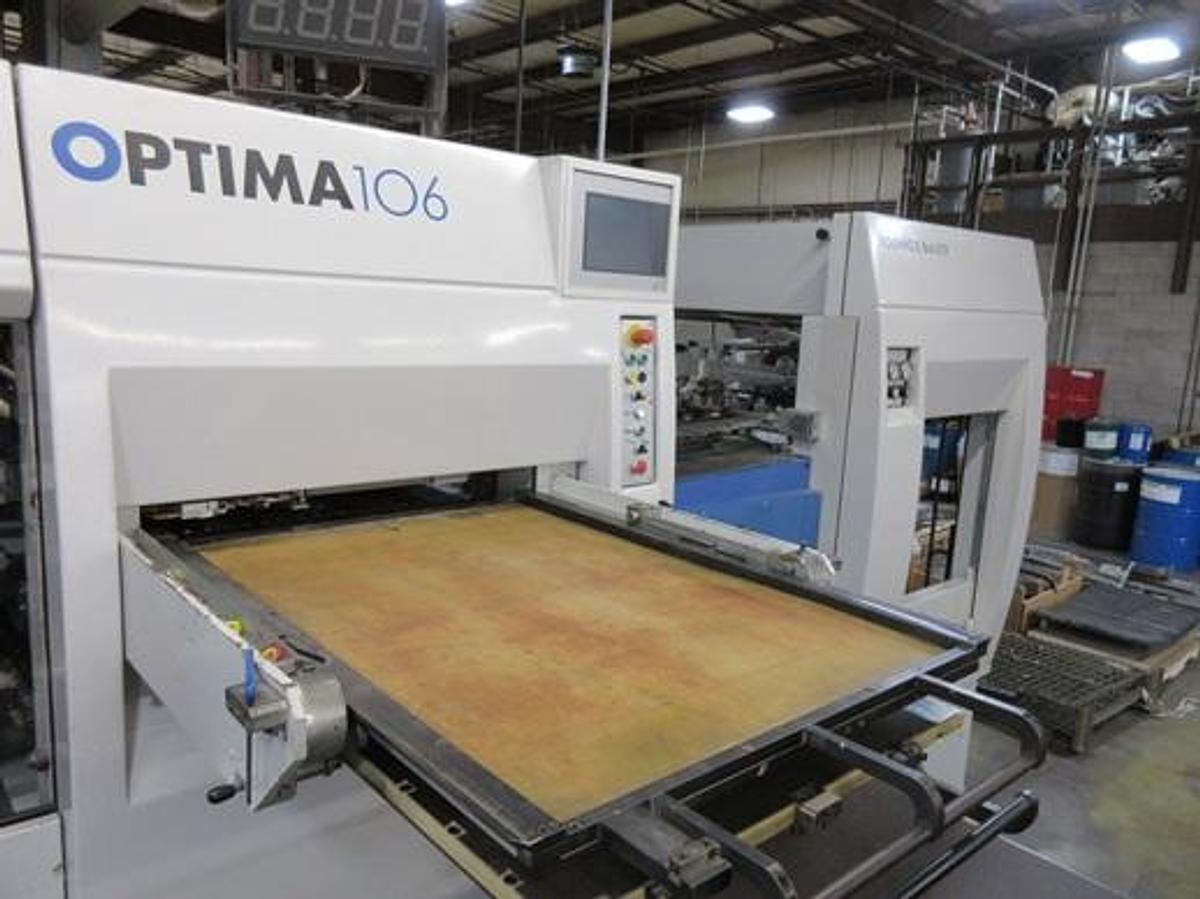

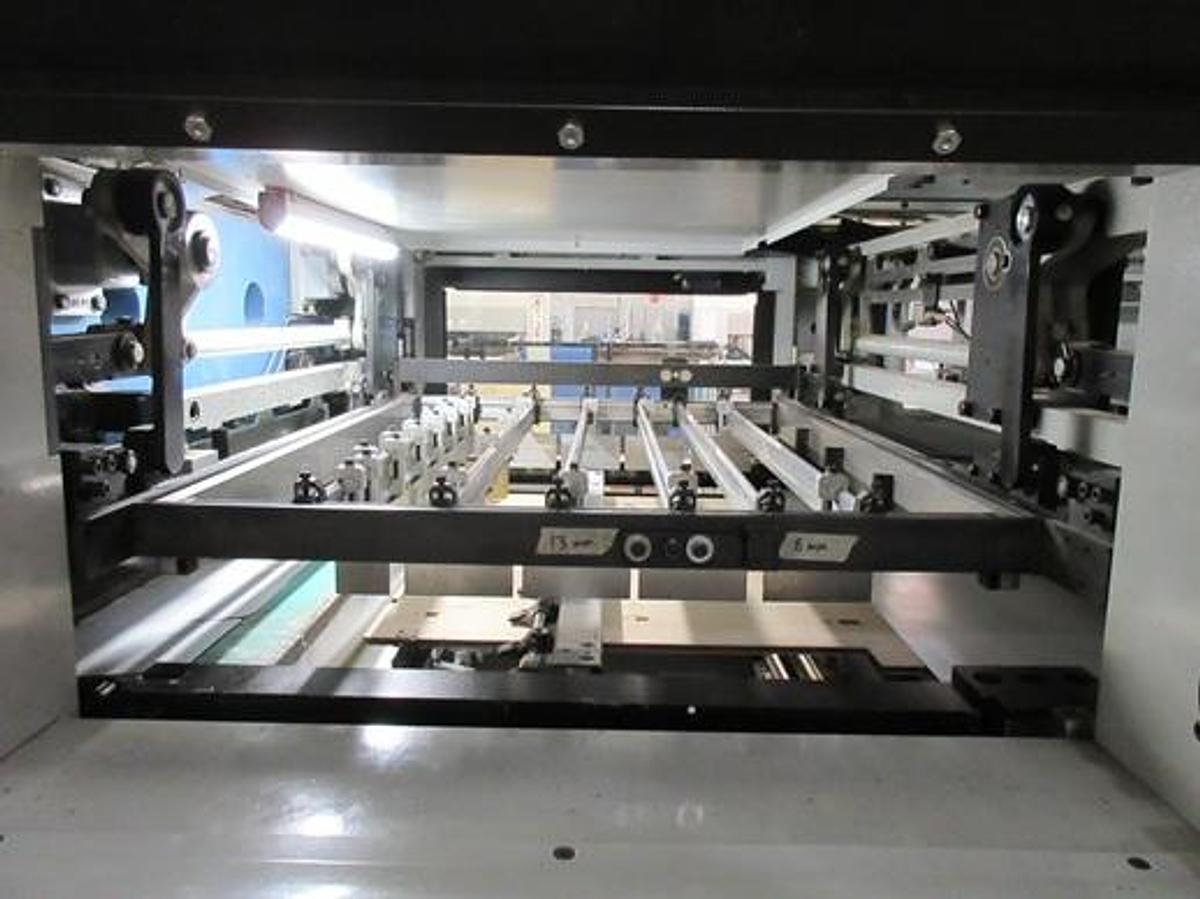

2018 IBERICA OPTIMA 106 DIECUTTER

2018 IBERICA OPTIMA 106 DIECUTTER

Maximum sheet size : Minimum sheet size : Maximum cutting size : Cutting force : Convertible stock : Maximum production rate : Machine hours : Machine voltage : 1060 x 750 mm (41 ¾” x 29 1/2”)

400 x 350 mm (15 ¾” x 13 ¾”)

1060 x 740 mm (41 ¾” x 29 1/8”)

300 metric tons (330 US tons)

90 g/m2 up to 3 mm

8,500 sheets per hour

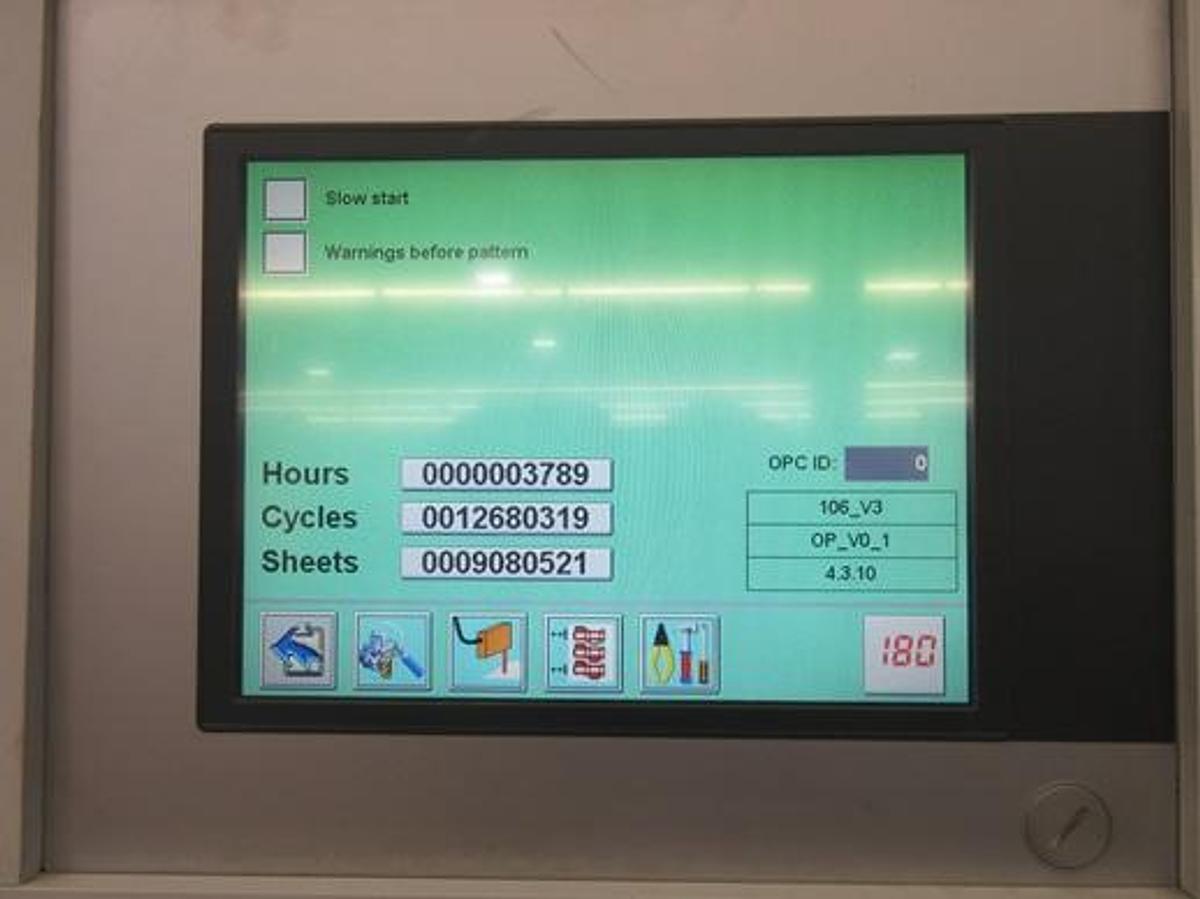

Only 3,789 hours

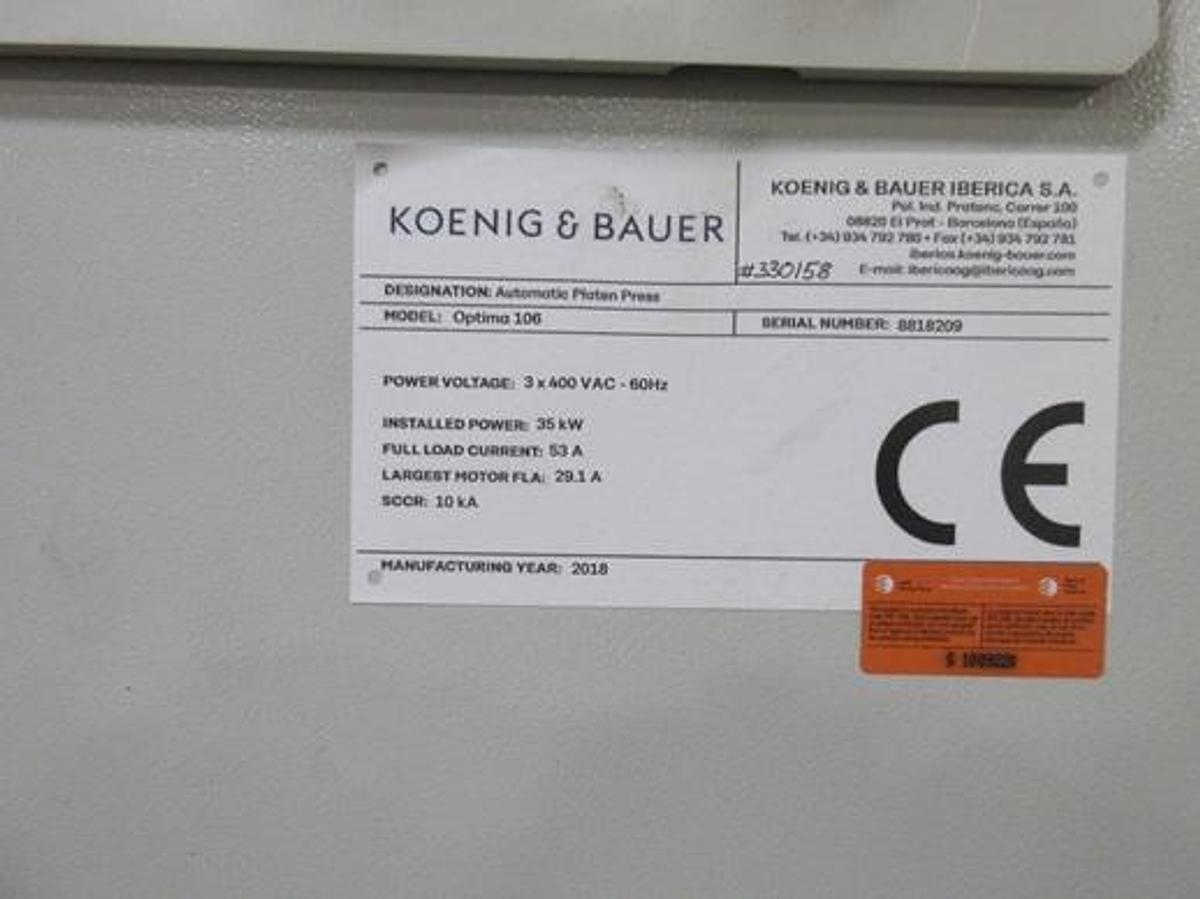

3x 400 V / 53 Amp. / 10 kVa

Equipment details :

• Elevated machine (400 mm)

• Non-stop feeder with direct pallet loading

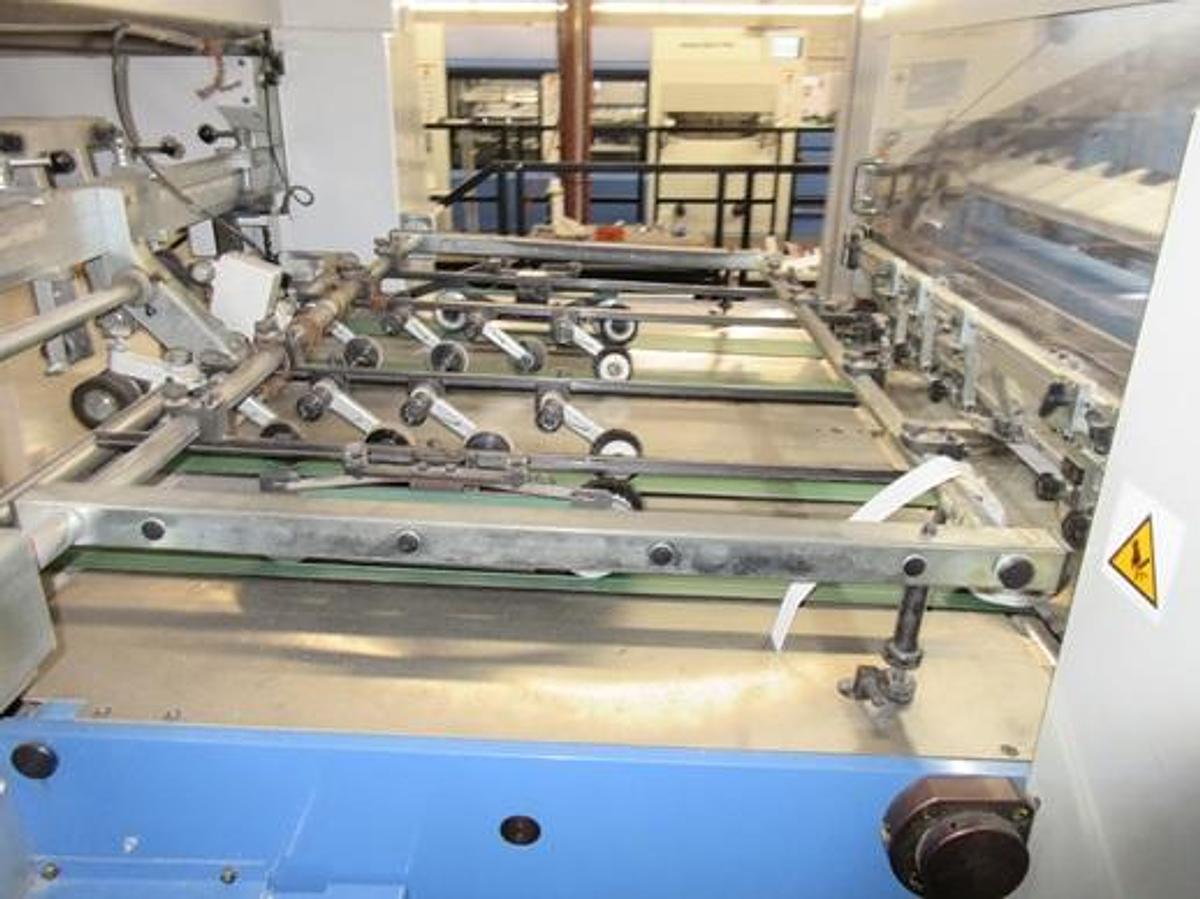

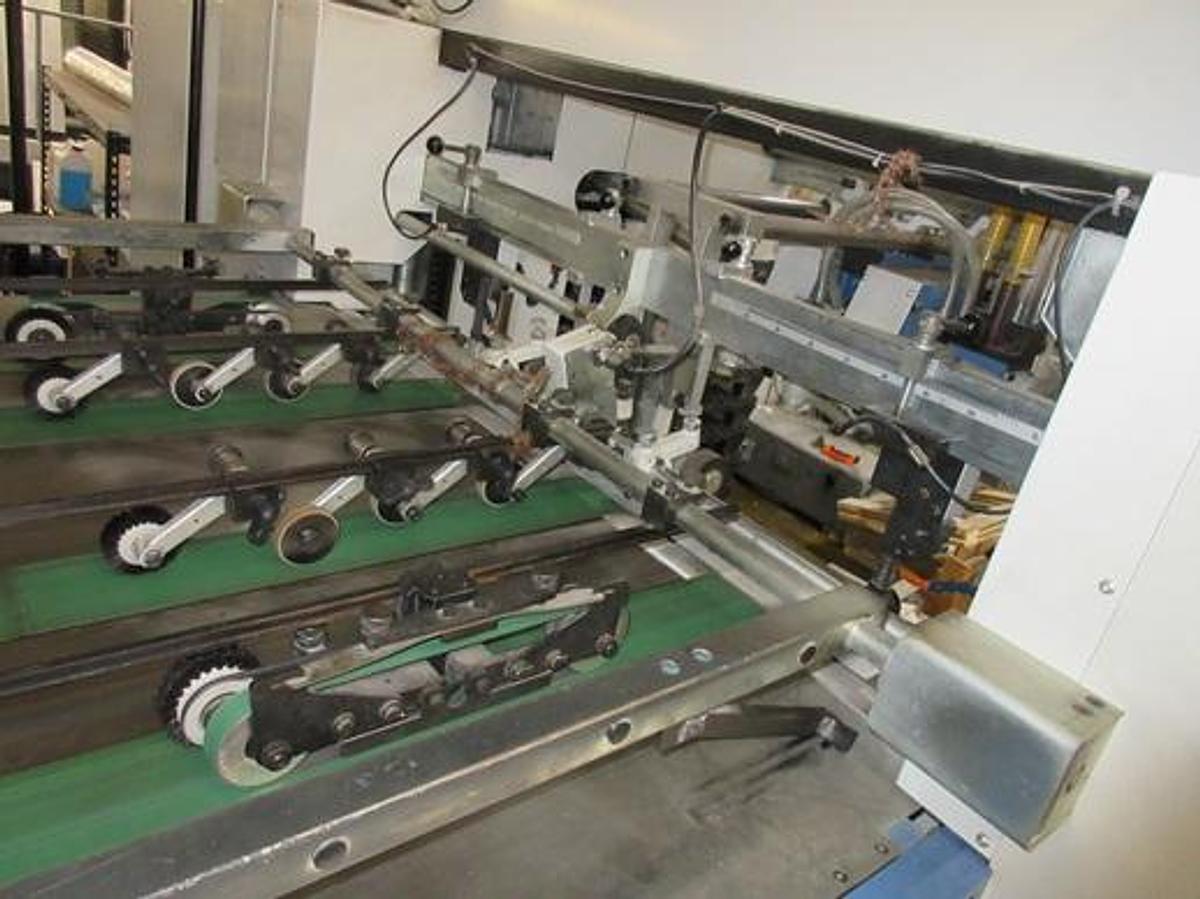

• Motorized front lays

• One (1) O.S. (operator side) pull guide and one OOS (opposite operator side) pull guide

• One (1) cutting chase (quick-locking) and one (1) regular open cutting chase

• One (1) cutting plate

• One (1) lower supporting plate with micrometre adjustment

• Thin plate system

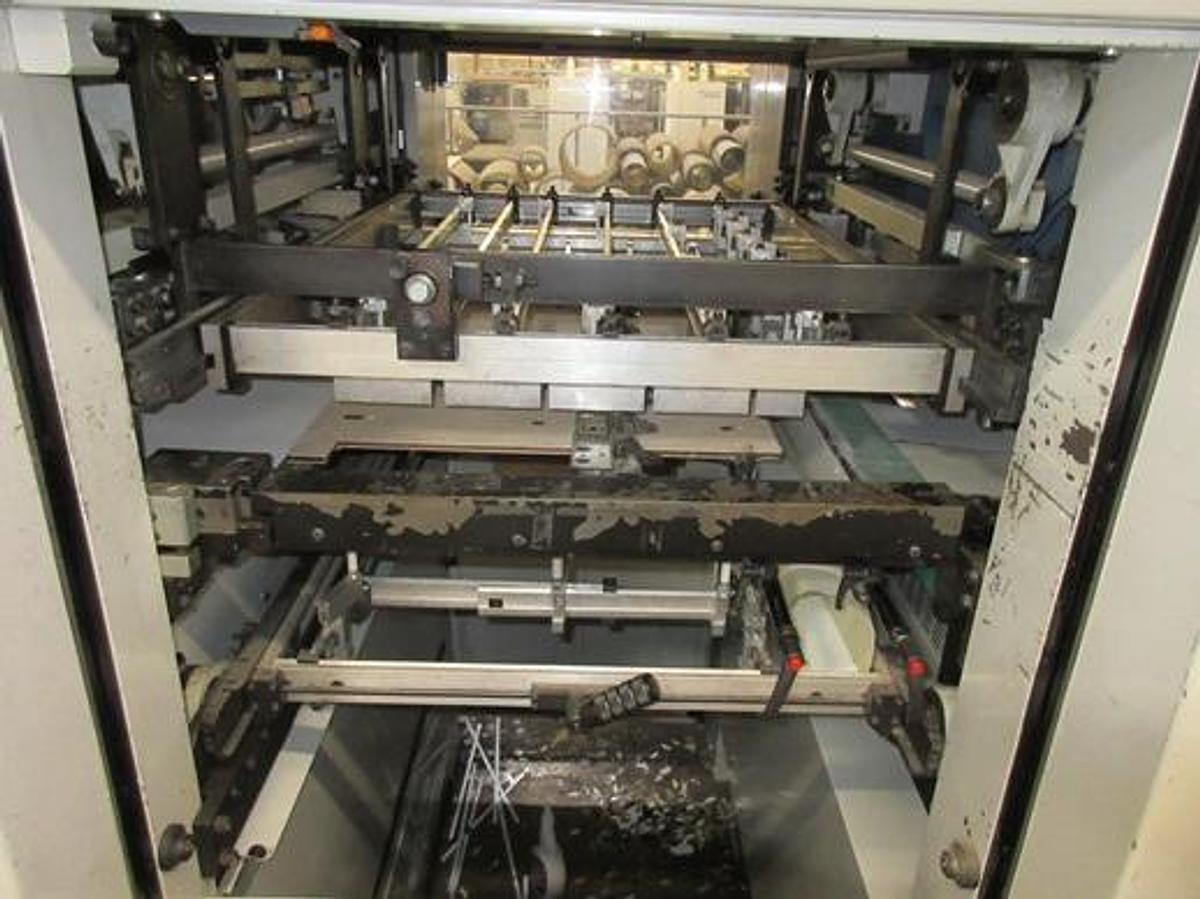

• Double action stripping station

• One (1) set of upper stripping equipment including frame, crossbars, pin holders and pins

• One (1) set of lower stripping equipment including frame, crossbars, pin holders and pins

• One (1) upper stripping frame with quick locking

• One (1) central stripping frame

• Front trim removal device

• Non-stop delivery

• Operator platform
