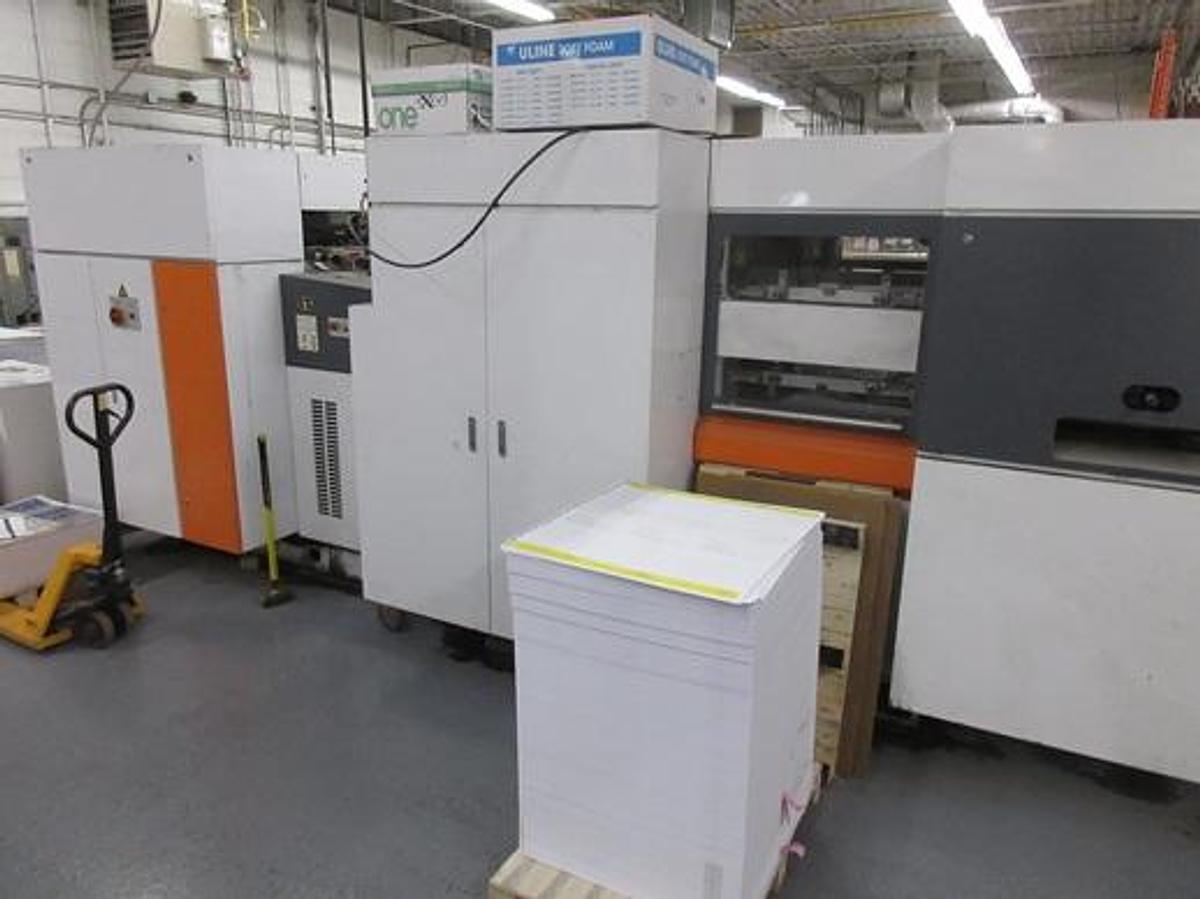

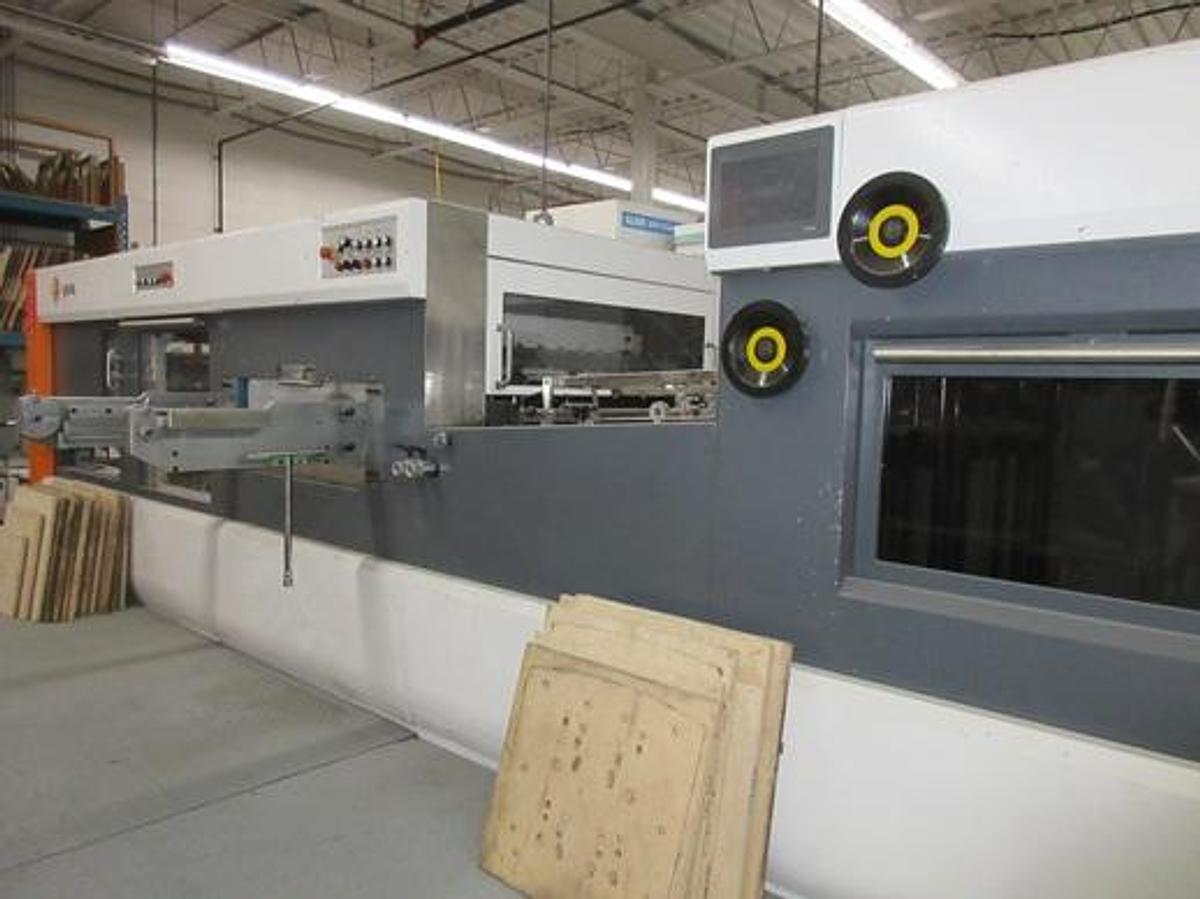

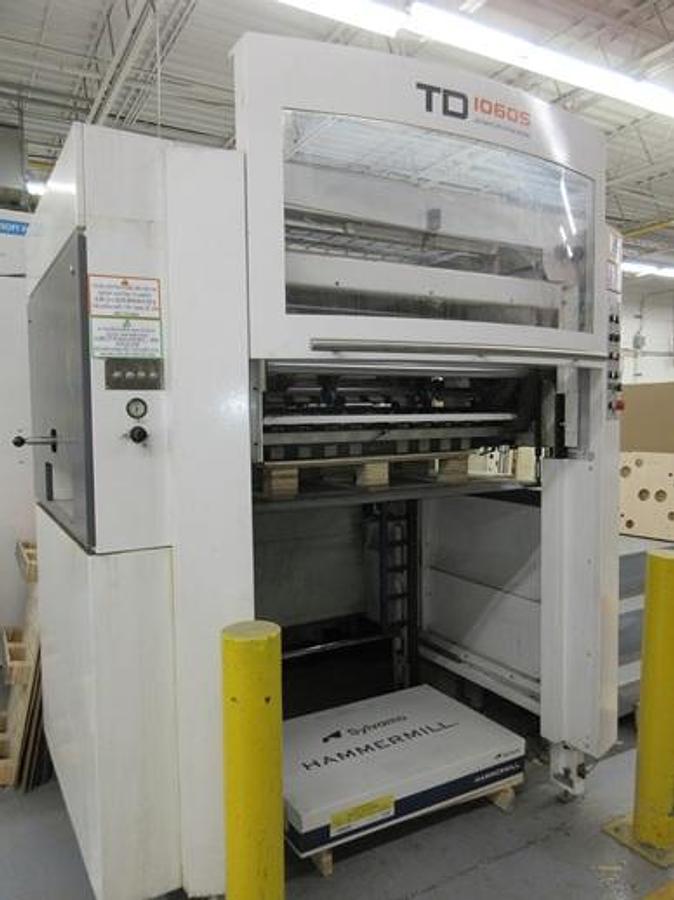

2016 YAWA TD1060S Die cutter

2016 YAWA TD1060S DIECUTTER

Maximum sheet size : 41.73” x 29.13” ( 1060 mm x 740 mm )

Minimum sheet size : 15.75” x 14.17” ( 400 mm x 360 mm)

Diecutting size : 40.94” x 28.74” (1040 mm x 730 mm)

Cutting force : 300 metric tons

Maximum production rate : 7500 sheets per hour

Processed materials : 90 to 2000 g/m2 and E & B flute

Machine voltage : 400 V / 18 kw / 32 Amp.

Equipment details :

• Elevated machine

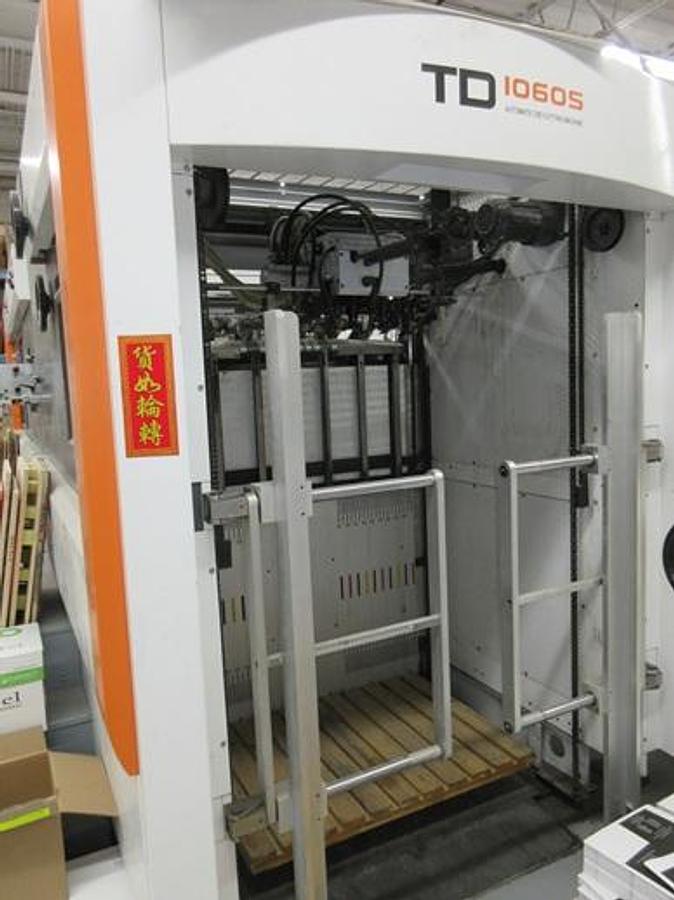

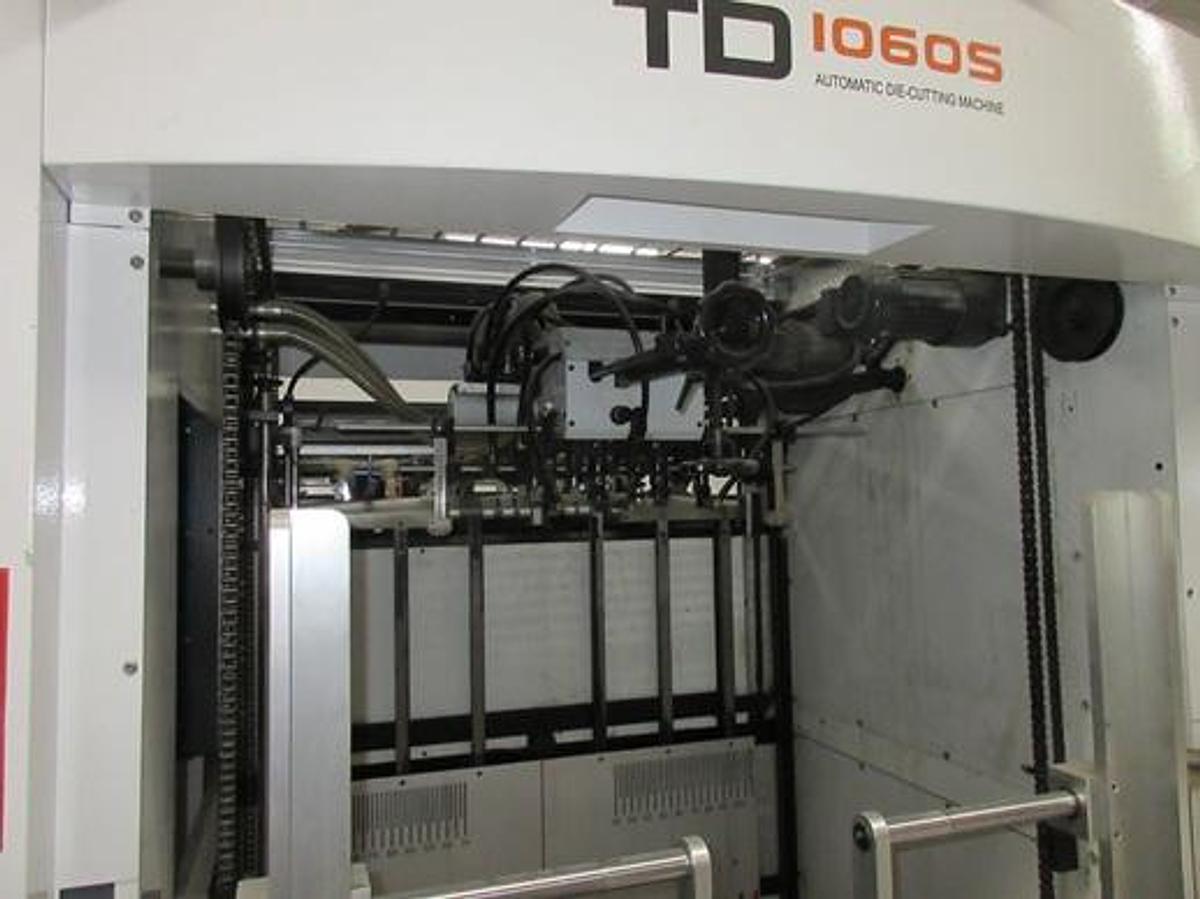

• Prepiling device

• Manual non-stop feeder

• O.S. (operator side) pull guide and OOS (opposite operator side) pull guide

• One (1) upper cutting chase

• One (1) cutting plate

• Lower supporting plate

• Double action waste stripping station

• Stripping station with one set of upper and lower stripping frames with tooling

• Electronic operator display (Control Unit)

• Non-stop rack in the delivery

• Operator platform

Machine can be seen in production.

Selling Price in AS-IS condition, ex-site T
