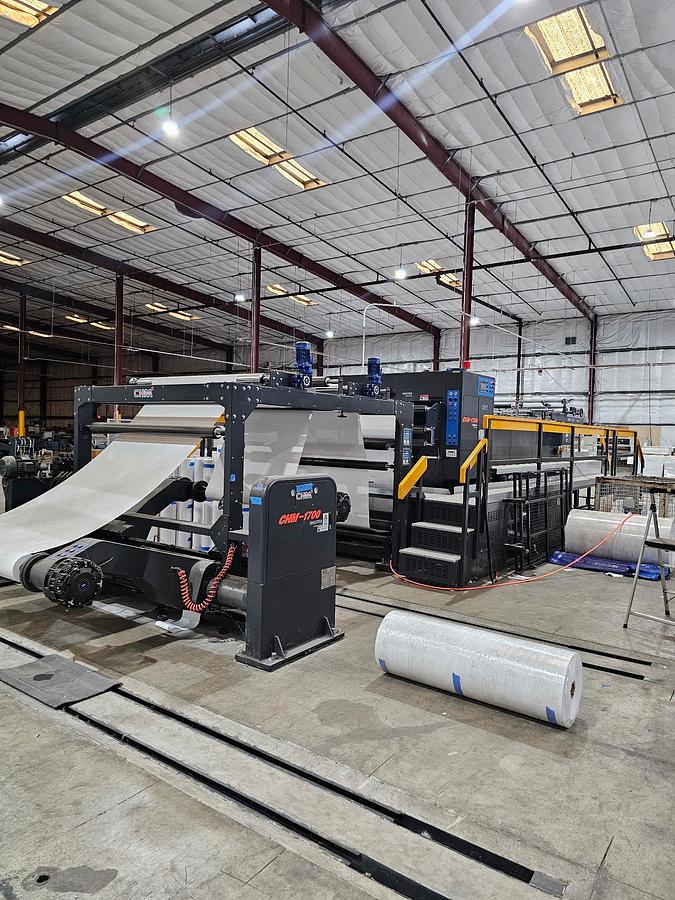

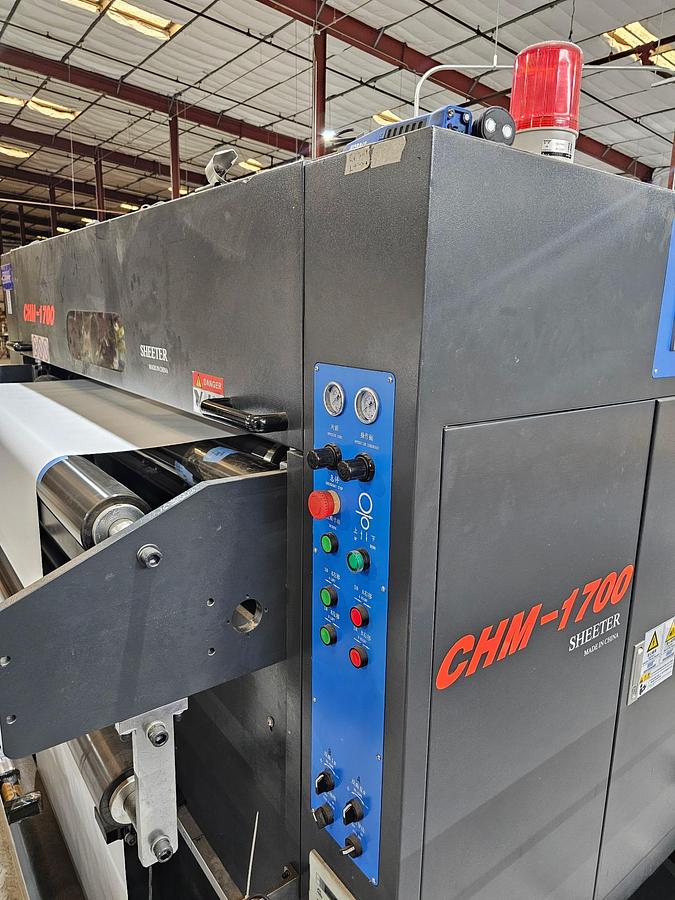

2021 CHM-1700 SK Single Knife Precision Sheeter

CHM-1700 SK Single Knife Precision Sheeter

* Cutting accuracy -+/- .020”

* Single (fixed knife) cutting unit with Siemens Color Touch Screen control

* Capability to cut paper and board from 35 gsm to 550 gsm (note that 550 gsm is

the total maximum basis weight that can be cut including all rolls combined)

* Maximum paper width - 65"

* Maximum paper length - 45"

* Minimum paper length - 18”

* Maximum skid height - 72"

* Maximum skid weight - 5,000 lbs.

* Maximum roll diameter – 72”

* Maximum roll weight – 5,000 lbs.

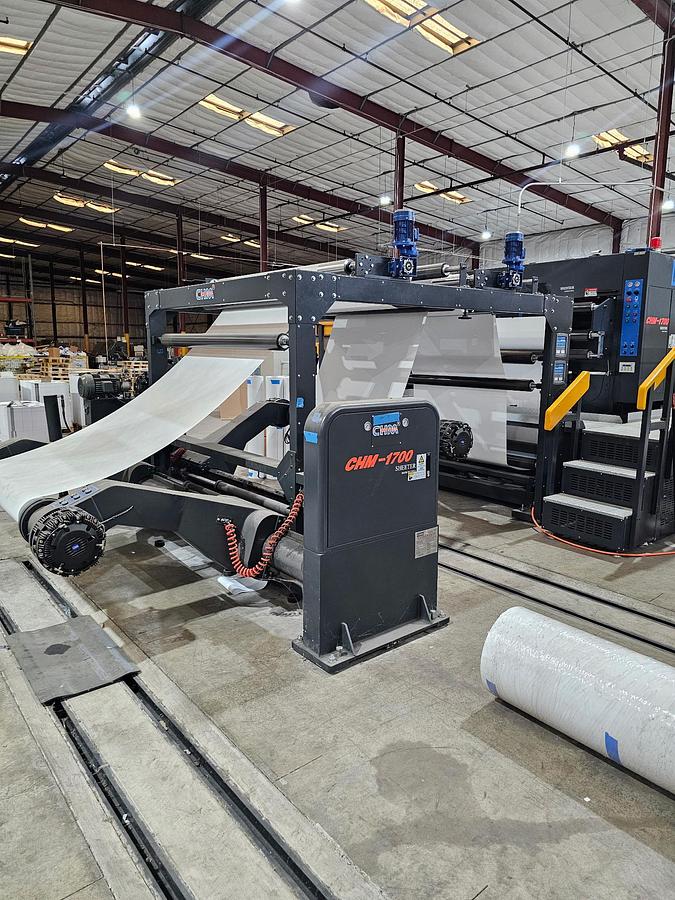

* Two (2) shaftless roll stands

* Two (2) sets of Montalvo air brakes

* Four (4) sets of 3" to 12” tapered chucks

* Gross weight – 28,000 lbs

* Max cutting speed: 750 ft per minute (subject to sheet length & sheet density)
