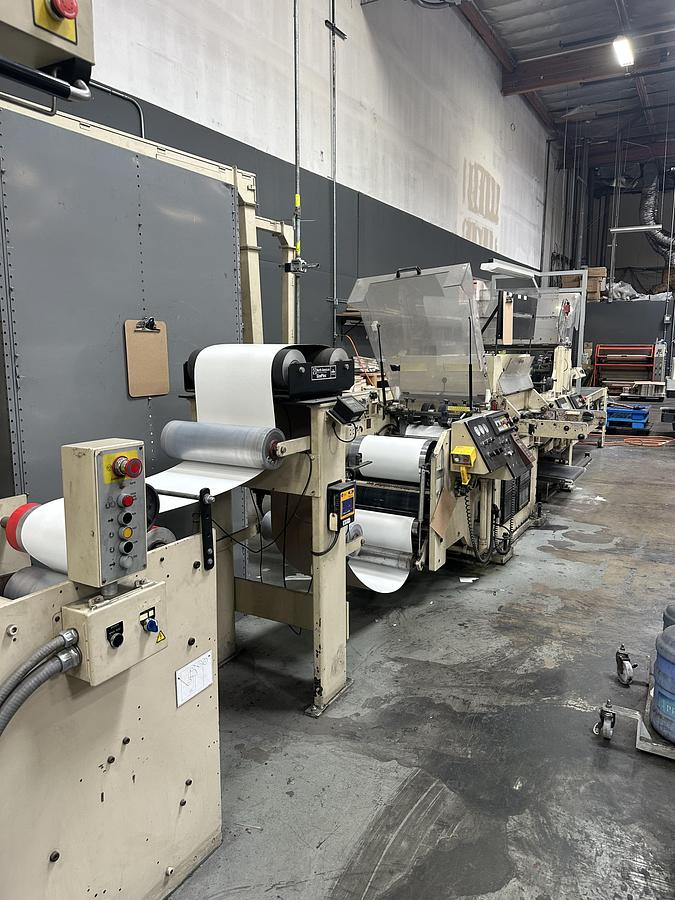

2001 PCMC - 18” 8 color Flexo with Die Cutter and Striping

2001 PCMC - 18” 8 color Flexo with board printer and die cutter

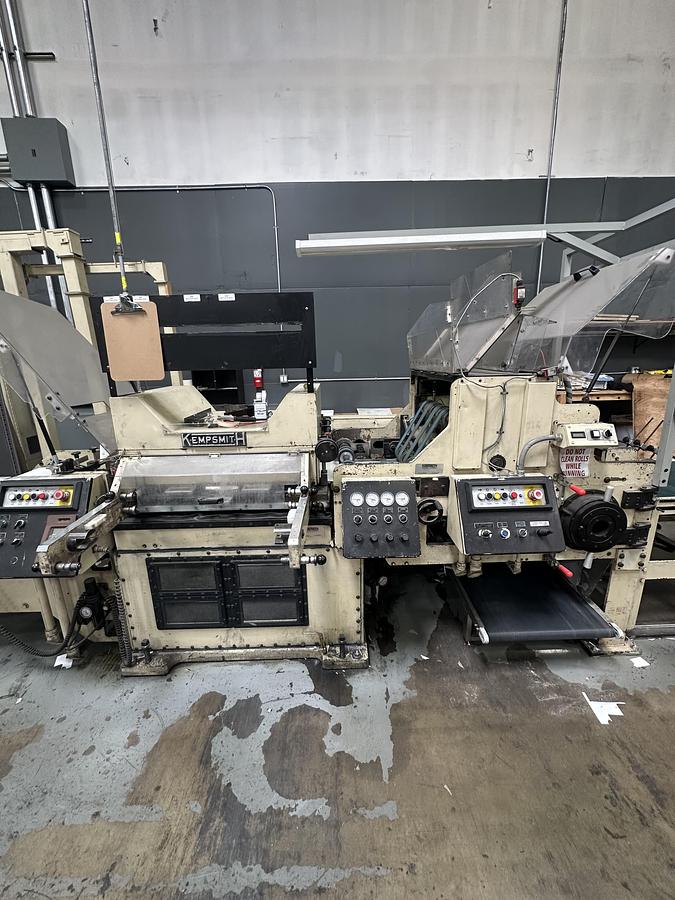

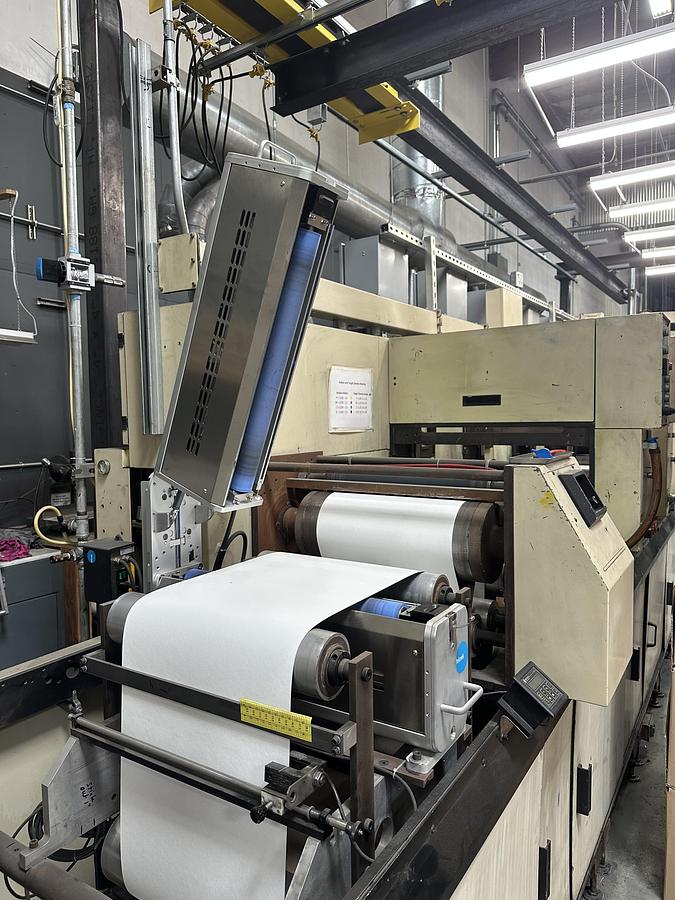

UV in 8th color station and in line Kemp Smith Die cutter and stripping drum.

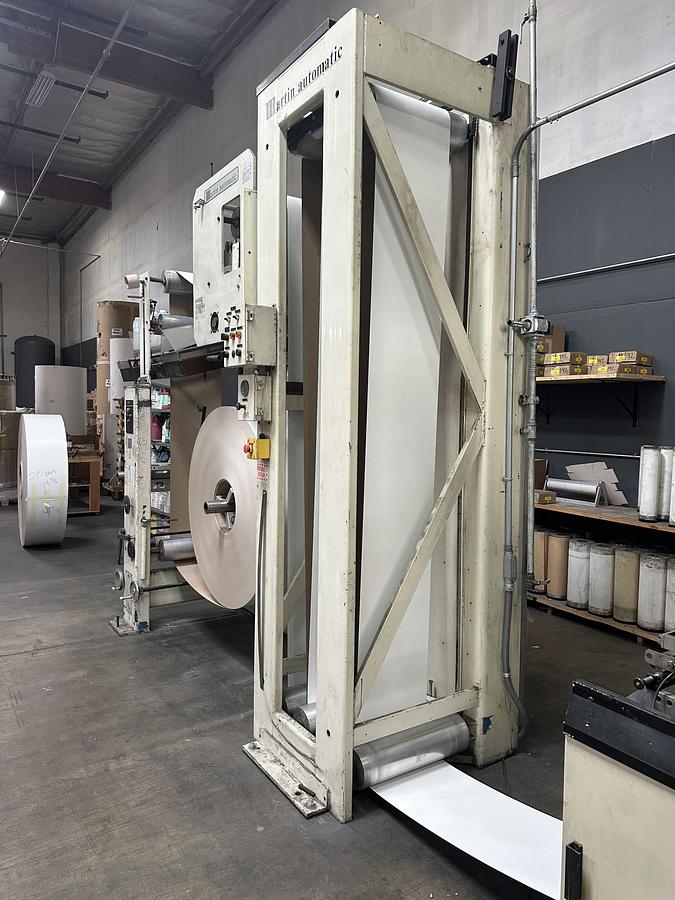

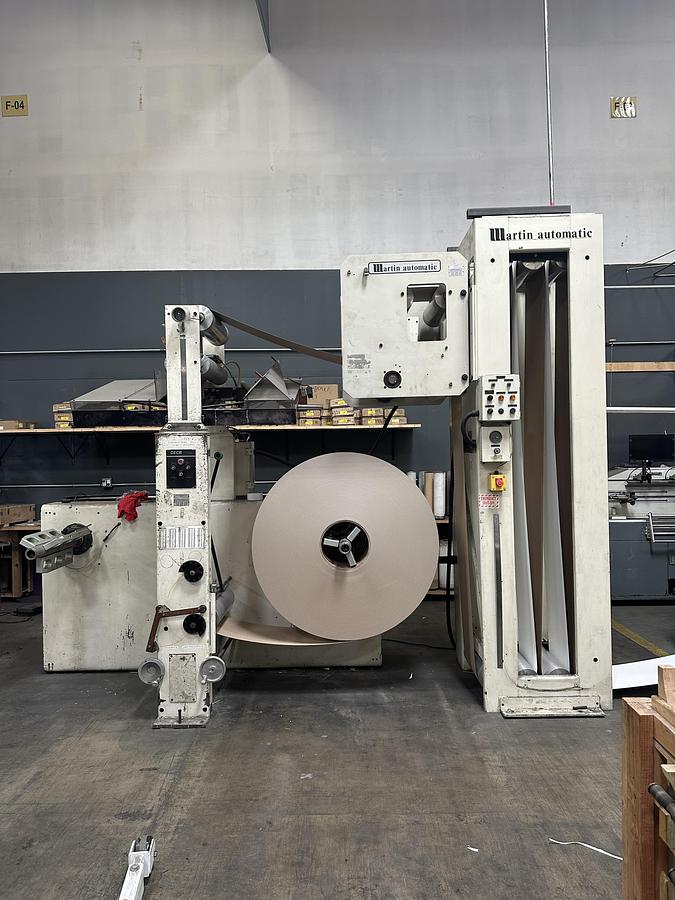

Martin Automatic Butt Splicer unwind stand

upgraded automatic registration system.

comes with stripping drums, anilox rollers, print cylinders.

More info available

1.         18 1/2" (470mm) flexographic board printing and die-cutting press, consisting of various sections as described.  Web flow while standing at the operators station is left to right.

2.         General specifications:

                                    Maximum height:                                90” (2286mm)

                                    Maximum depth:                                 72” (1829mm)

Maximum printing width:                     18" (457mm)

Maximum paper width:                       18 1/2” (470mm)

Maximum die-cutting width:                18” (457mm)

Repeat length range:                          6” to 24" (152mm to 610mm)

Die-cutting repeat:                              9” to 24” (229mm to 610mm)

Maximum unwind diameter:               72” (1828 mm) Martin

                                                            Automatic MBX 5-22-72

Maximum rewind diameter:                N/A

                                    Print to print registration:                    +/-.006” Board stock on 2

                                                                                                sigma limits, over 300 feet

                                                                                                of sampling at steady speed.

                                                                                                Substrate must meet the

                                                                                                following conditions,

1)    Coefficient of web

elasticity shall not vary more

                                                            than 5% within 300 ft. of web,

                                                             2)  Material caliper must not vary more than +/-.004” within 300 ft of web,

3)  Moisture profiles must not vary more than 0.5% within 300 ft of web,
