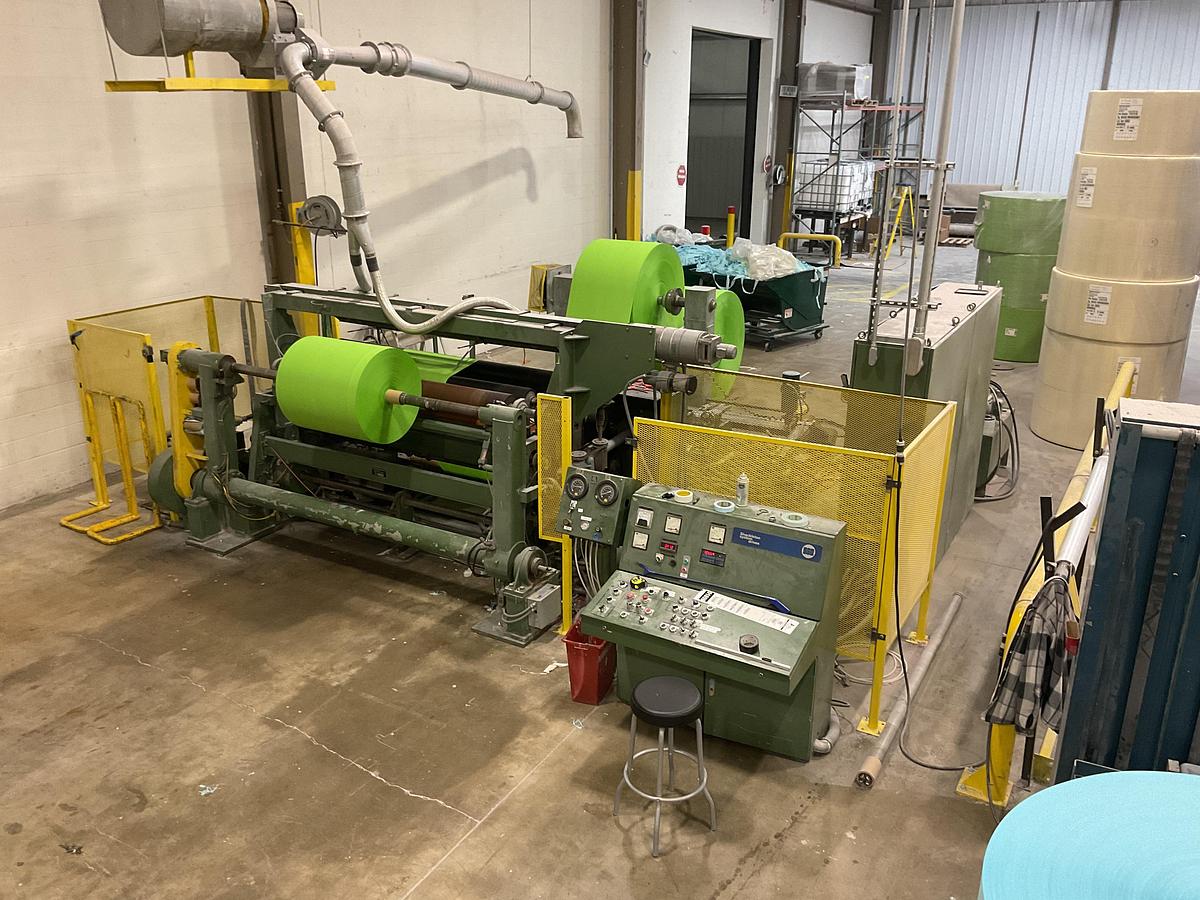

1983 83" Arrow Model 2000 Simplex Surface Center

1983 83" Arrow Model 2000 Simplex Surface Center

assist rewind slitter rewinder with closed loop constant surface winding.

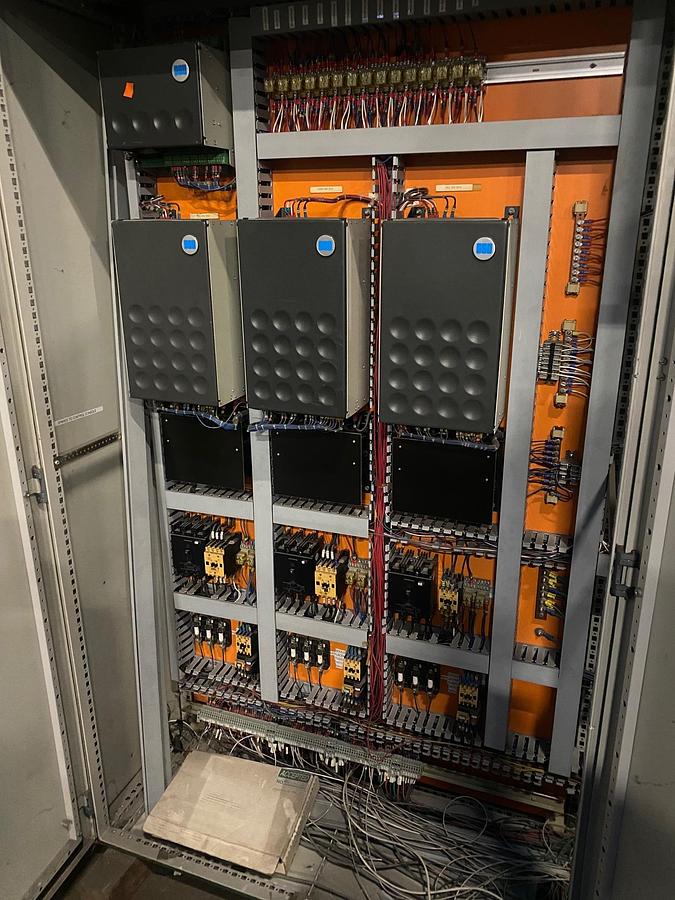

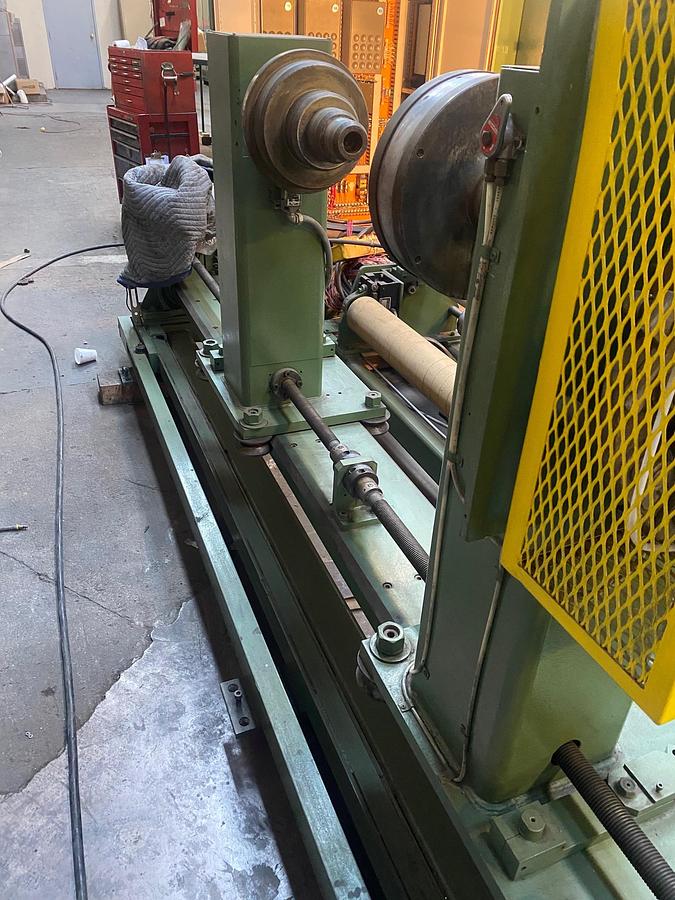

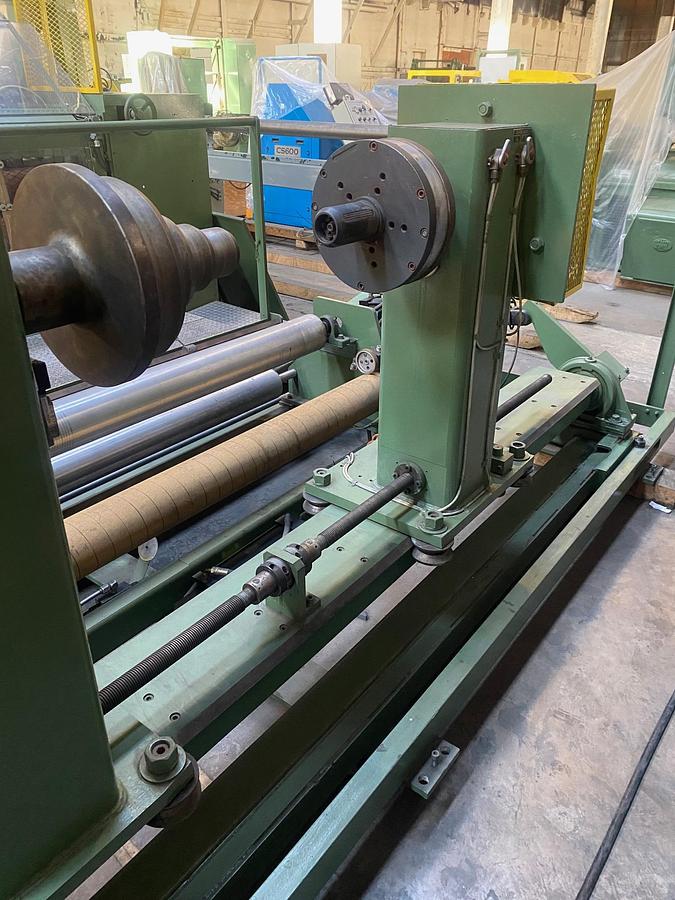

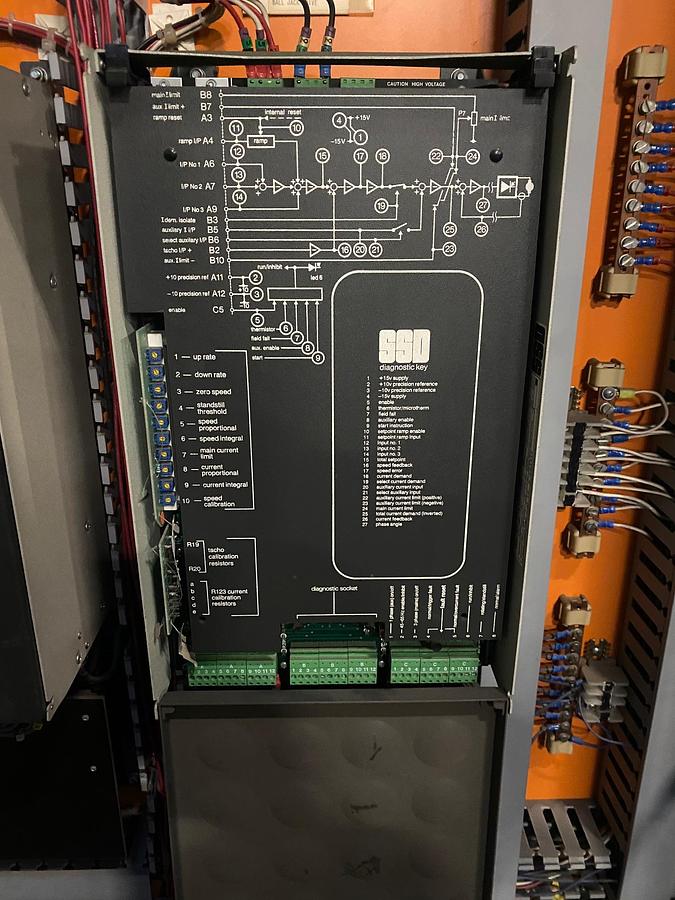

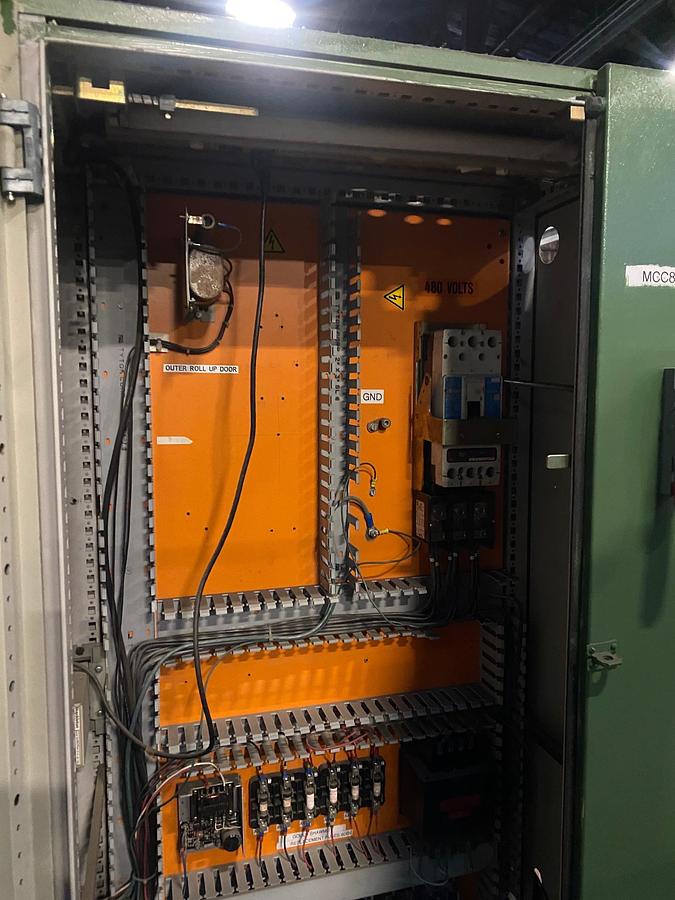

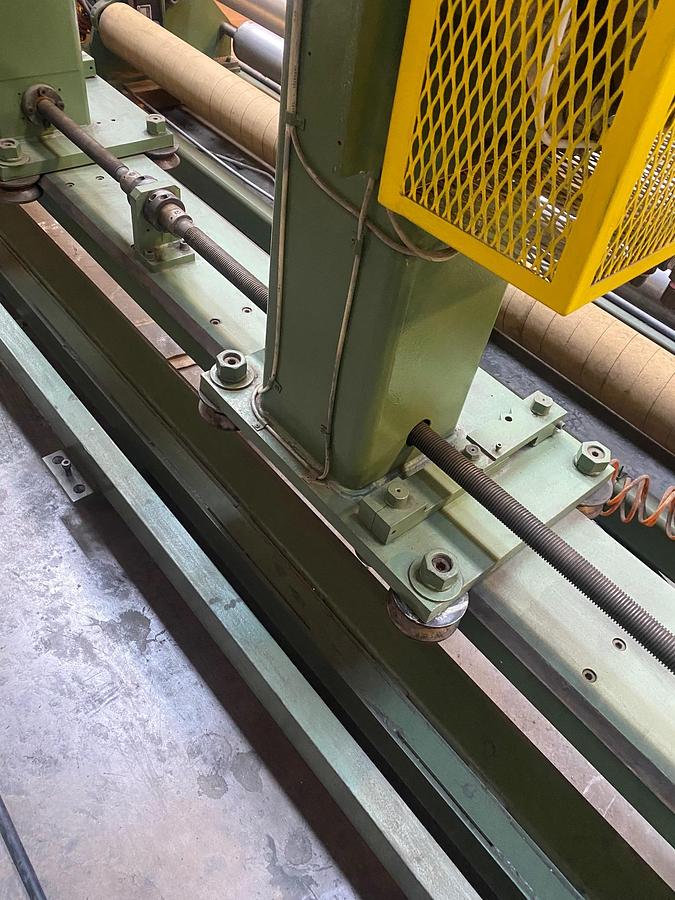

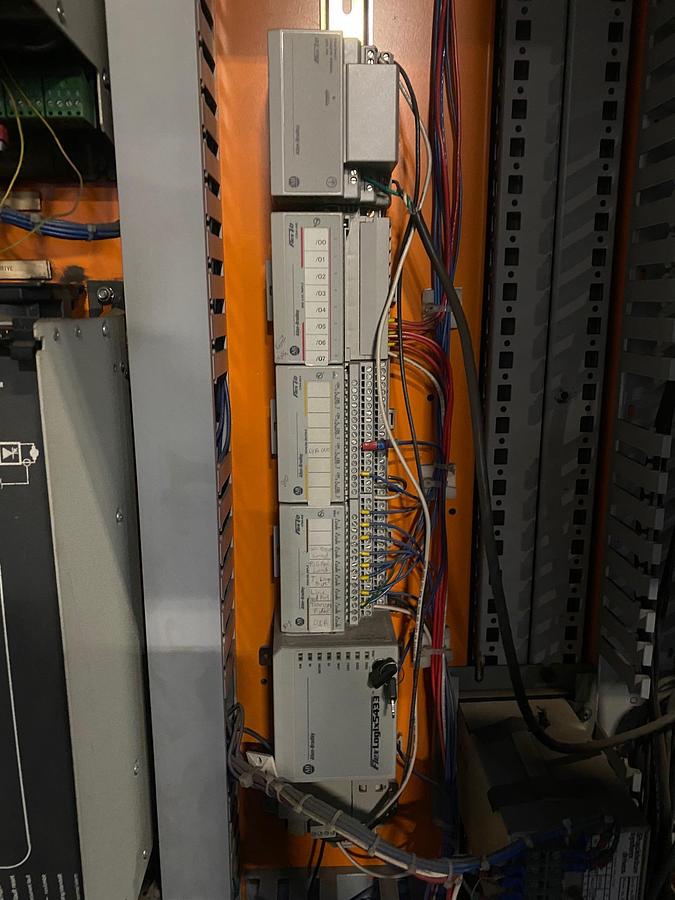

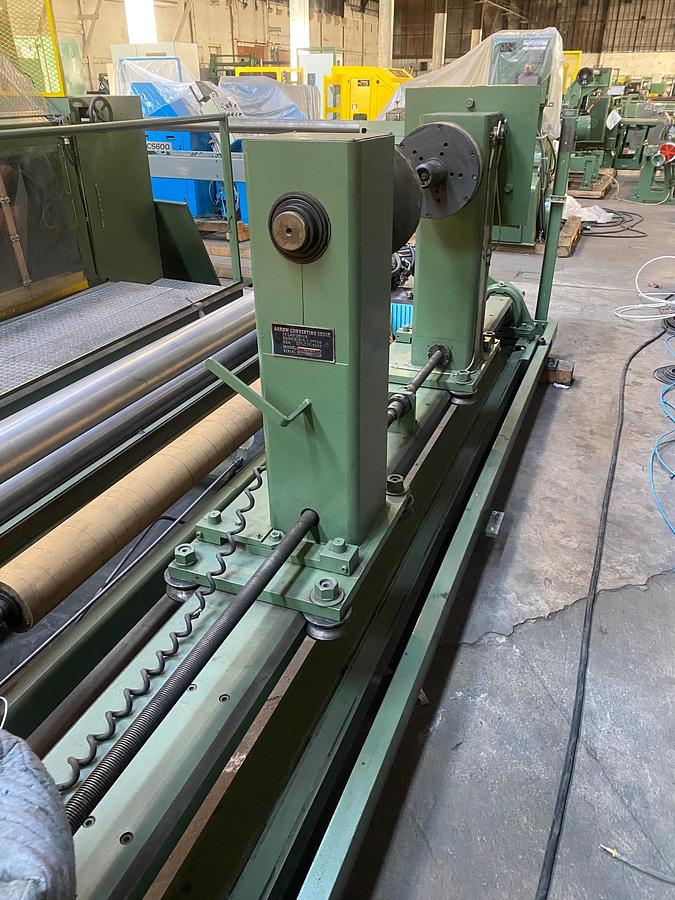

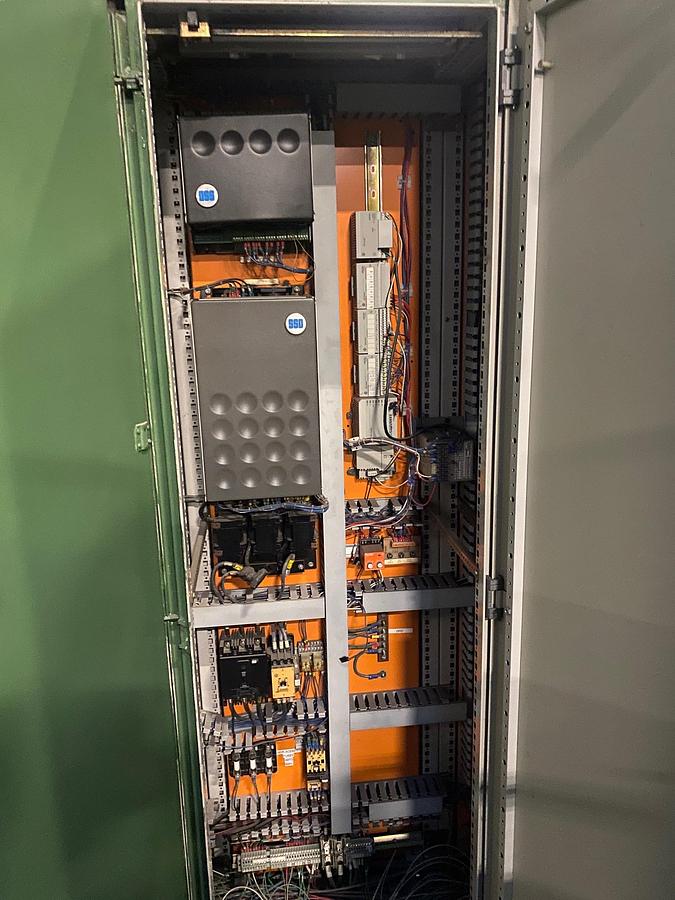

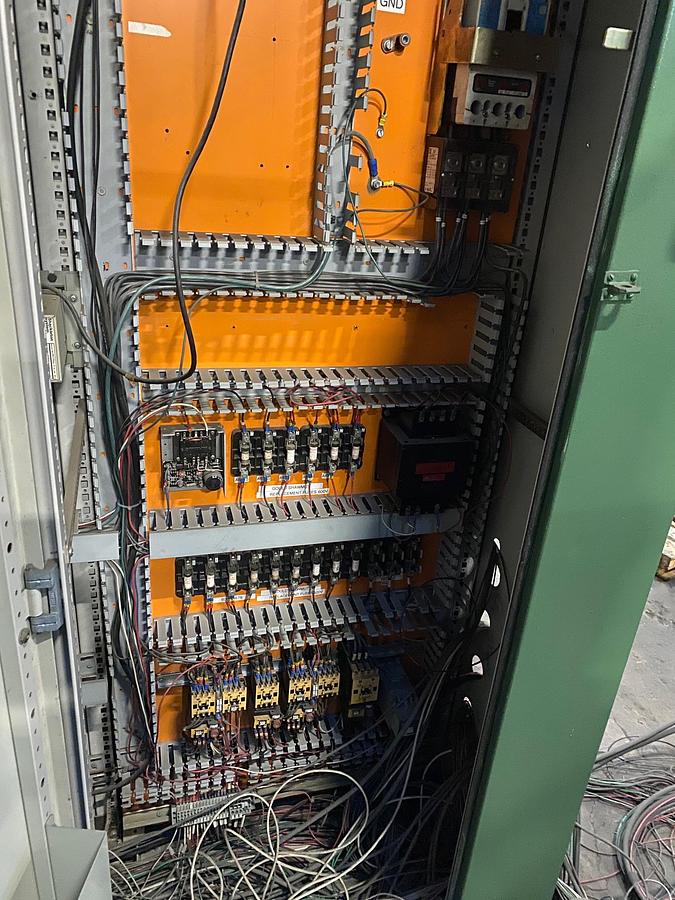

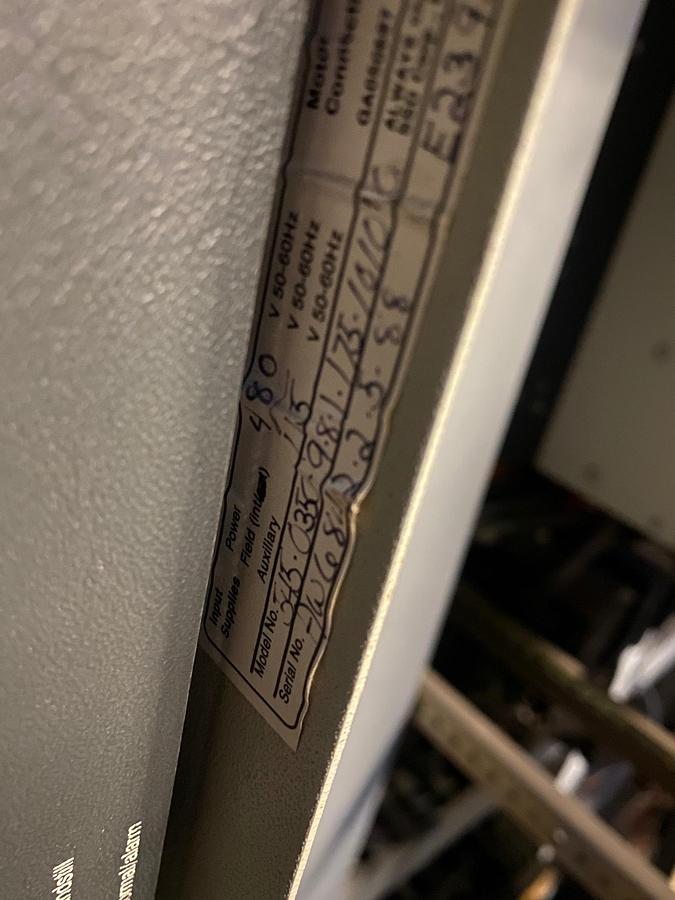

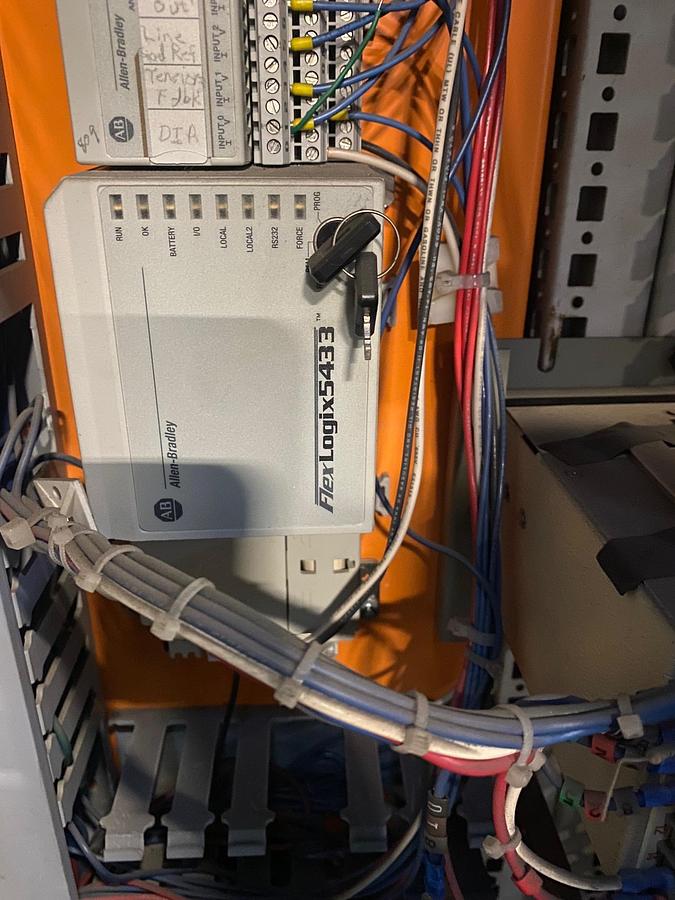

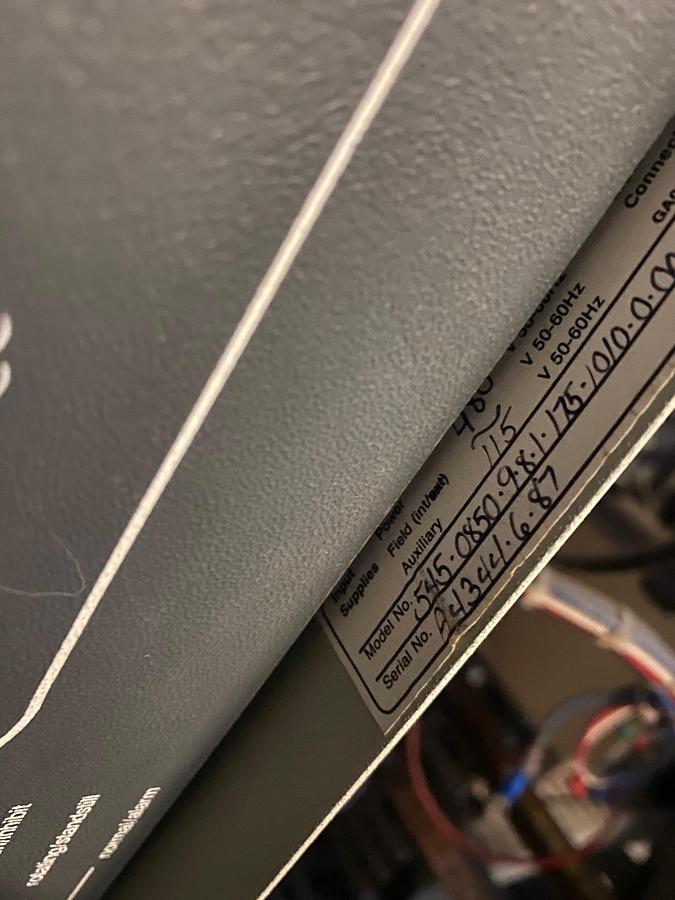

Surface / center surface wind. Speed 2500 FPM. 87" rolls. Max. rewind dia. 70". For heavy materials, manufacturer recommended 50" dia. rewind; for lighter materials, 60" rewind, using table delivery. If not using table delivery, then 70" dia. rewind. Detached unwind Model 452 shaftless floor pickup, 74" dia. 3" & 6" chucks air brake. Max. weight 7,000 lbs. PA auto tension system transducer. Fife automatic edge guiding, pneumatic sensor. Shear slit. (28) driven female rotary knives mounted on a new air shaft for fast setup times. (6) New Mario Cotta Class 1 male knives. Fixed bowed before slitting section. (2) spreader Bingham; rolls placed after slitting station for slit separation. Auto counter. Auto stop. 50 HP Reliance variable speed regenerative motor; drives rewind shaft. 20 HP motor drives pull roll & slitting section. 20 HP motor drives surface winding roll. 3 motor drive. Shackleton SSD solid-state controls DC drives. 460 volt, 3 phase, 60 cycle. Controls / drives updated in 1999. Rewind station has pivoting arms to support the winding shaft & helps to deposit finished rewound rolls onto roll cart. Driven rubber-covered winding drum has 20 HP motor to drive the roll winding drum is mounted on pivots & pneumatically loaded against the rewind mandrel. As the rewinding roll diameter increases, the winding drum pivots to move outward. Ball screw controls position of the rewind arms. Electronic control of the position of the rewound roll. The result is the maintenance of a preset constant surface pressure regardless of the roll weight or the diameter of the rewinding roll. Pull roll located prior to the winding drum. (2) 3" & 6" OD air button type rewind mandrels. Rewind roll handling system. Hydraulic lift table & shaft extractor. Motorized puller. Precision tension control as low as .1 PLI. Designed for converting papers, boards, nonwovens, fiberglass, laminates, coated papers, nonwovens & foams. Recently used to slit fax / thermal paper, carbon paper and coated nonwovens. Original design dielectric kraft 3.5 mills thick opaque & translucent. 8.5" wide slit widths. Unique closed loop constant surface winding system allows rewinder to handle wide range of materials & a variety of roll widths & sizes with constant control of the web tension & roll density all at speeds up to 2500 FPM. Heavy-duty 3" plate side frames.
