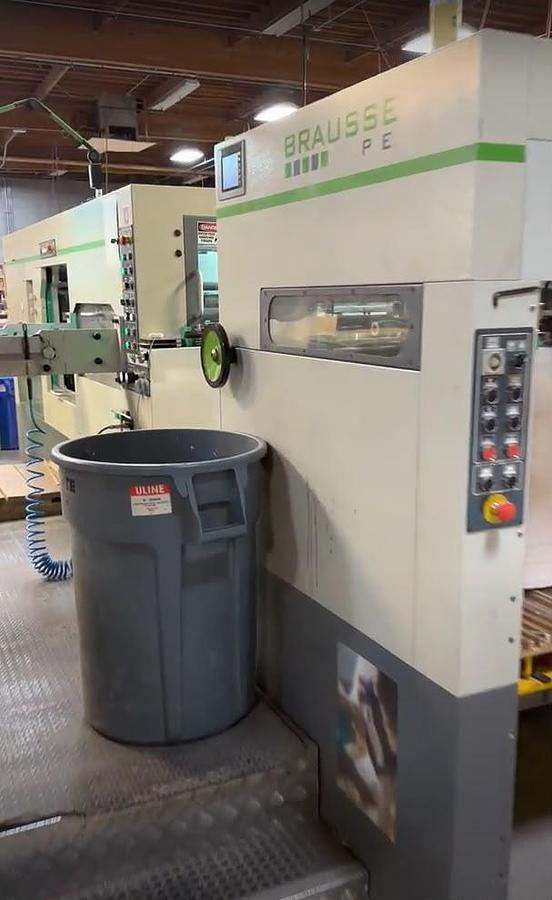

2011 BRAUSSE 1050 SE Automatic Die Cuter

2011 BRAUSSE 1050 SE Automatic Die cutting and Creasing Machine

with Stripping Station

and Gripper Edge Waste Removal.

Specifications :

Maximum Paper Size : 1050 x 750 mm (41-1/3" x 29-1/2")

Minimum Paper Size : 400 x 370 mm (15-3/4" x 14-1/2")

Maximum Cutting Size : 1050 x 750 mm

Maximum Cutting Pressure : 300 tons

Paper Thickness : 0.1 - 2 mm

Minimum Gripper Margin : 8 mm

Inner Chase Size : 1145 x 755 mm (45" x 29-2/3")

Face Plate Size : 1080 x 736 mm (41-1/2" x 29")

Maximum Mechanical Speed : 7500 s/h

Variable Speed Main Motor : 11.0 KW

Other Power Required : 9 KW

Overall Length : 7100 mm

Overall Width : 2960 mm

Overall Height : 2045 mm

Total Weight (approx.) : 15.5 tons
